DIMPR - Trader Electrical Accessories


DIMPR

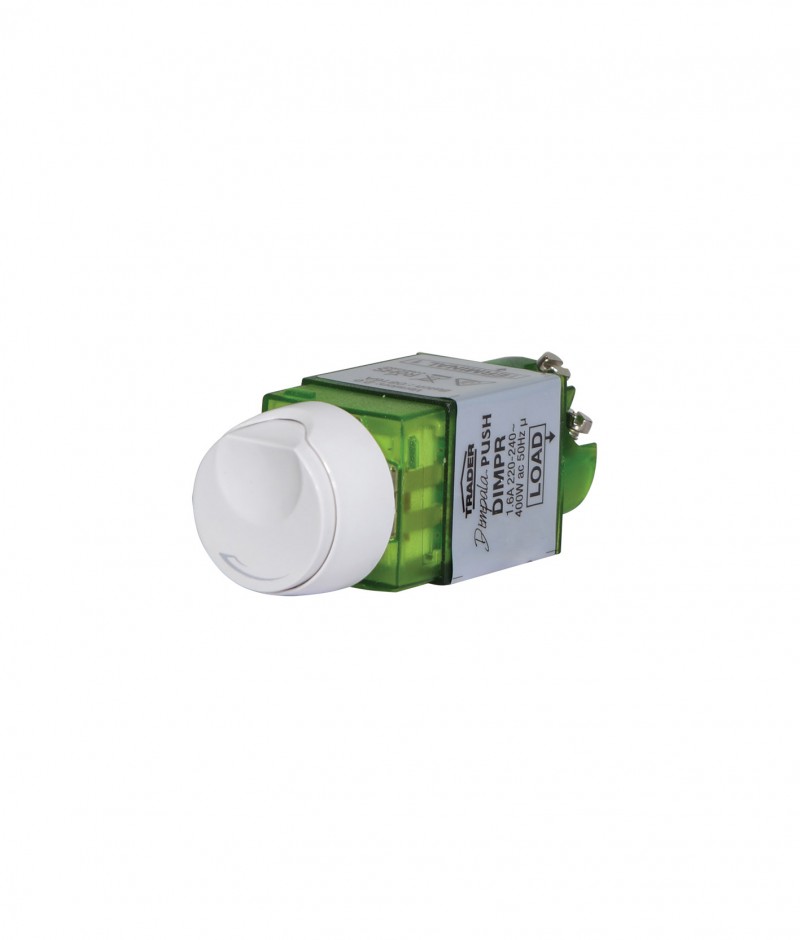

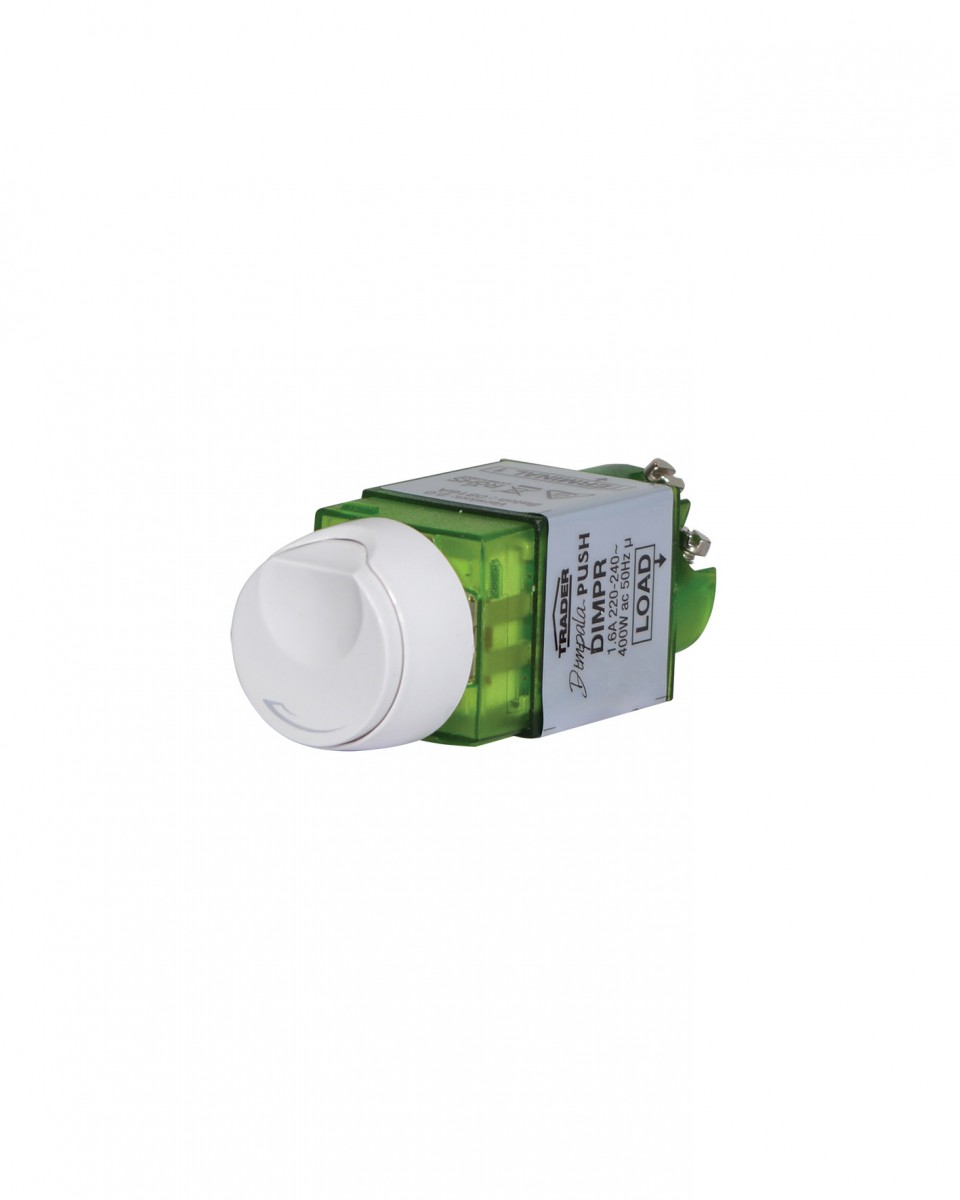

Dimpala - Push Rotary Dimmer 400W with  Glow

Unit(s)
SKU: DIMPR Box Qty: 4 units Categories: Dimpala Dimmers
  • 220-240Vac / 50Hz / 2W Min / 400W Max / <1% to > 95% (load dependent).
  • Suitable for LED, incandescent and 12V dichroic lamps.
  • Minimum dimming level, typically almost 0%.
  • Push switch configuration with terminals similar to a standard switch for easy wiring.
  • Integrated switch replaces the need for an additional control switch.
  • Soft start for improved lamp & driver life.
  • Thermal protection via NTC (negative temperature control).
  • DIMPR is suitable for use with Australian wall plate apertures including Trader, HPM# & Clipsal*.
  • Can be two way switched, but only one dimmer in the circuit.
  • 2 Year Warranty.

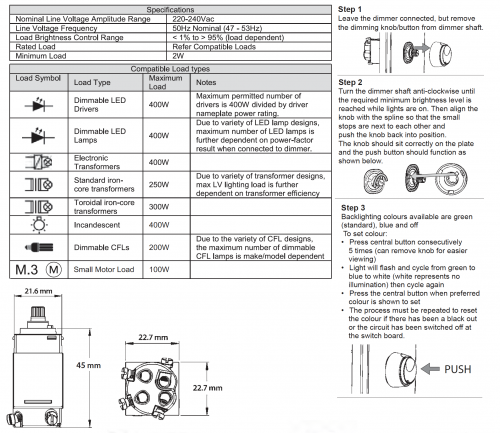

View Data Sheet in Downloads for complete product information.
