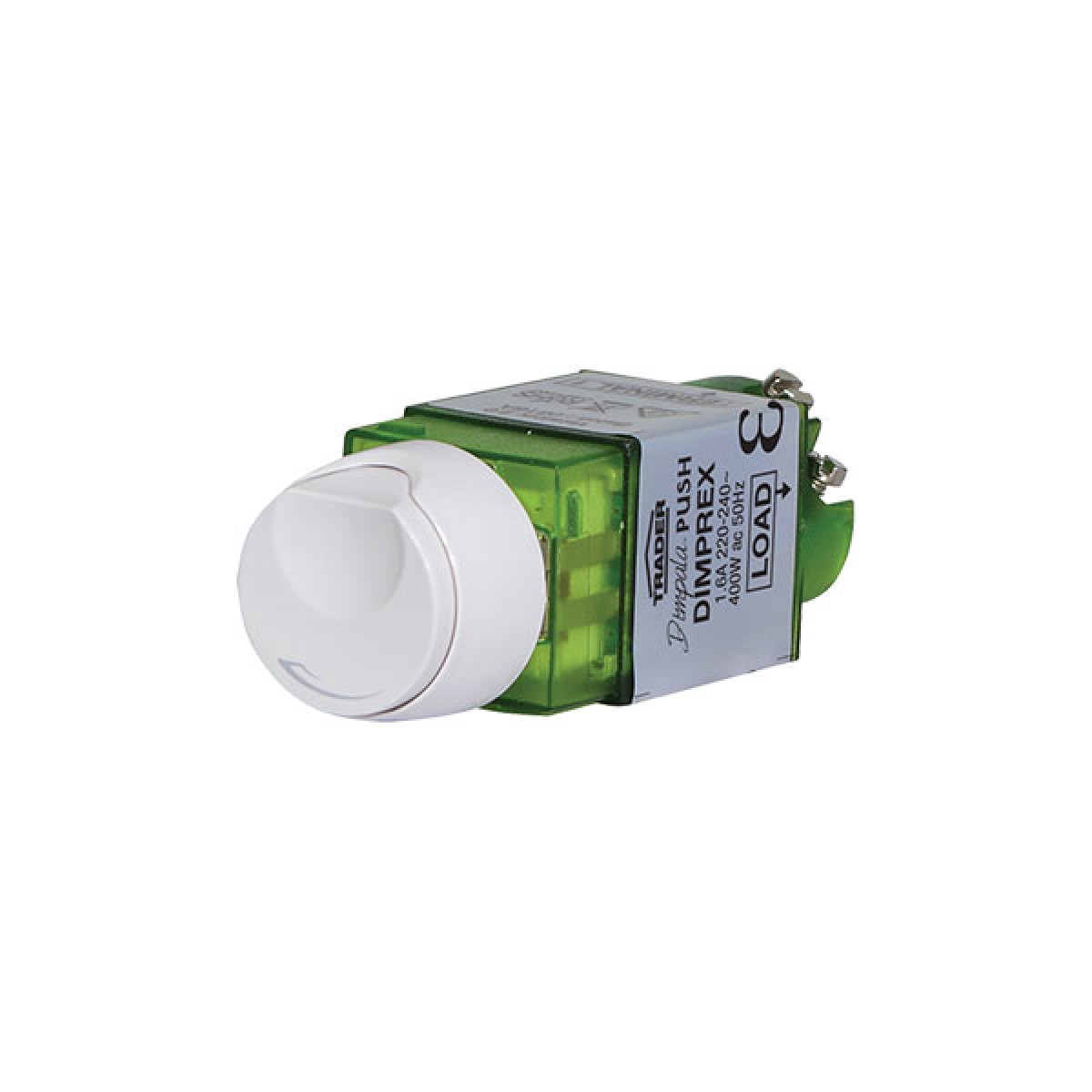

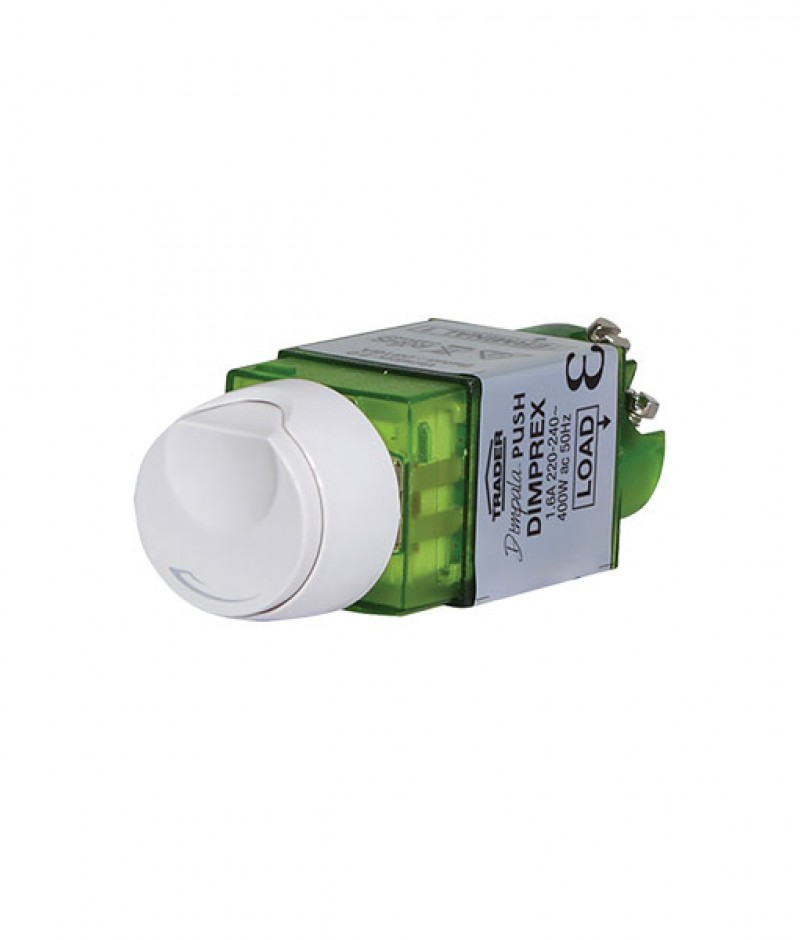

Trader’s Dimpala Electronic PUSH Dimmer is electronically switched and provides optimised dimming of LED lamps and drivers.

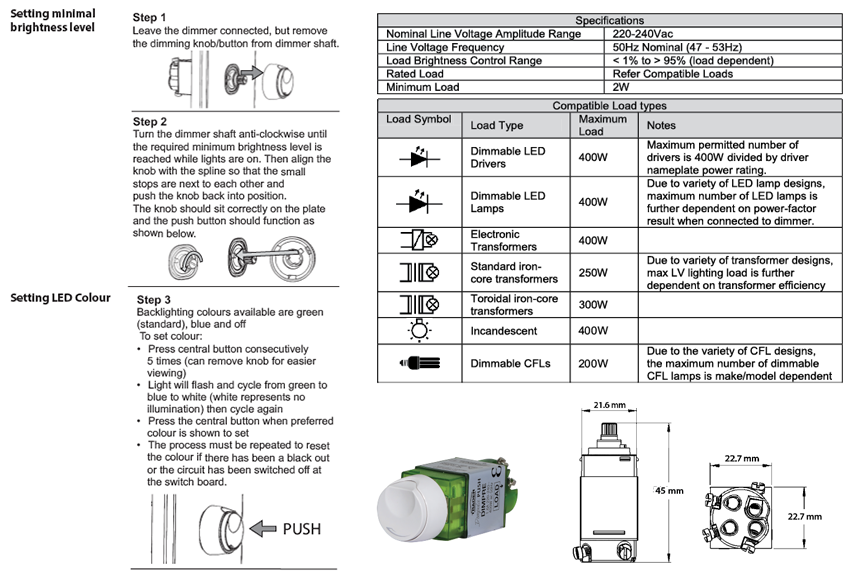

• 220-240Vac / 50Hz / 2W Min / 400W Max / <1% to > 95% (load dependent, see table below).
• Suitable for LED, incandescent and 12V dichroic lamps.
• Minimum dimming level, typically almost 0%.
• Push switch configuration with terminals similar to a standard switch for easy wiring.
• Integrated switch replaces the need for an additional control switch.
• Soft start for improved lamp & driver life.
• Thermal protection via NTC (negative temperature control).
• DIMPRE is suitable for use with Australian wall plate apertures including Trader, HPM# & Clipsal*.
• Can be two way switched, but only one dimmer in the circuit
 |
