CHPPSW2G

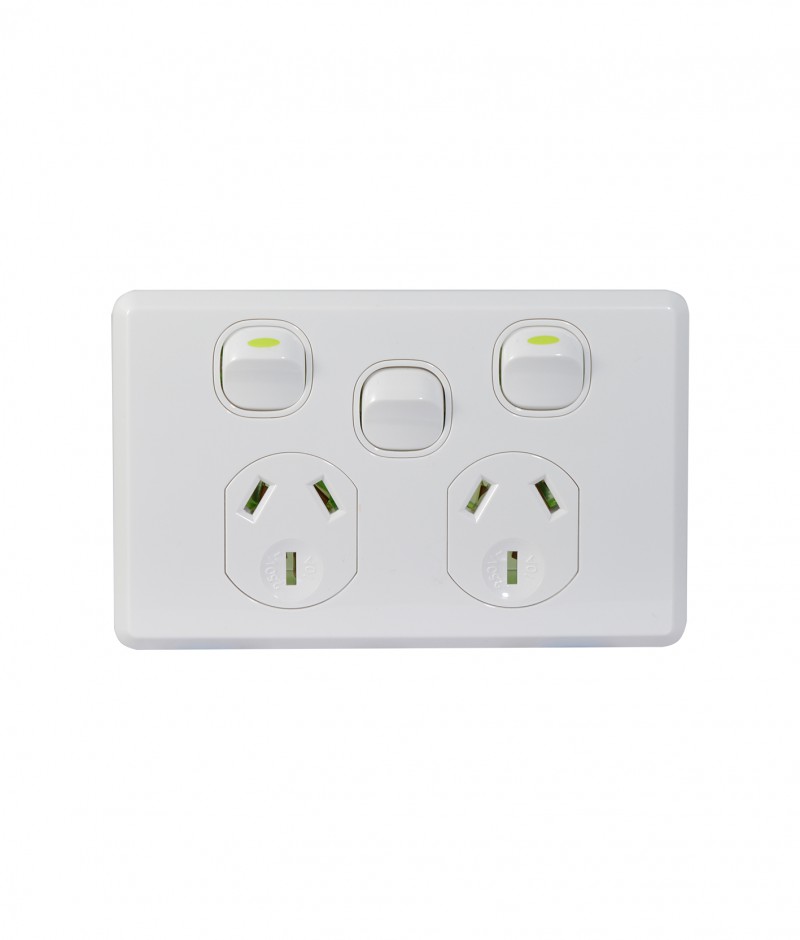

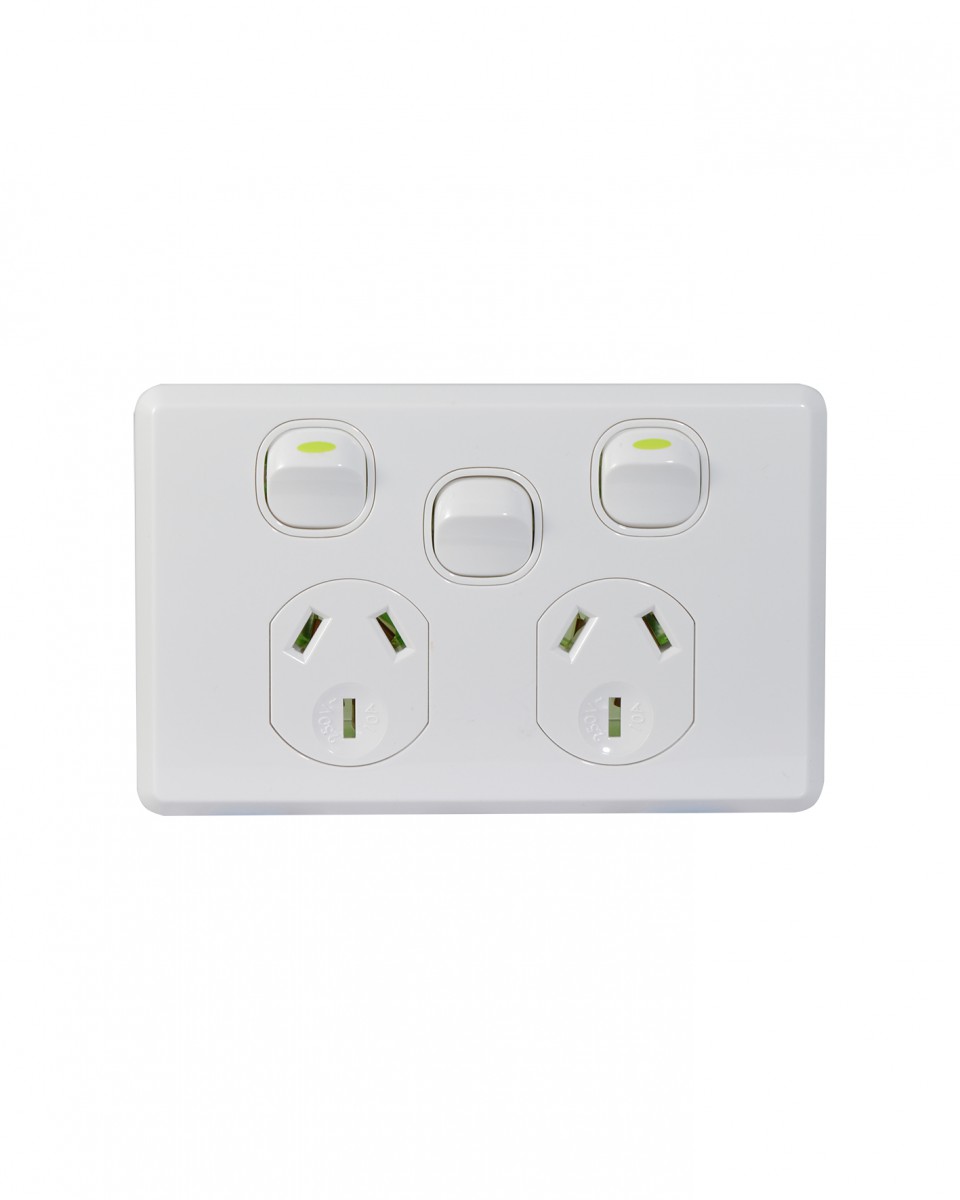

Cheetah - Power Point Switched 2 Gang, 10A 250V~, With Extra Switch 16AX/20A

Unit(s)
SKU: CHPPSW2G Box Qty: 5 units Categories: Cheetah Sockets
  • Switches approved to AS/NZS3133.
  • Socket outlets approved to AS/NZS3112.
  • Fits standard Australian wall boxes and mounting accessories that use 84mm mounting centres.

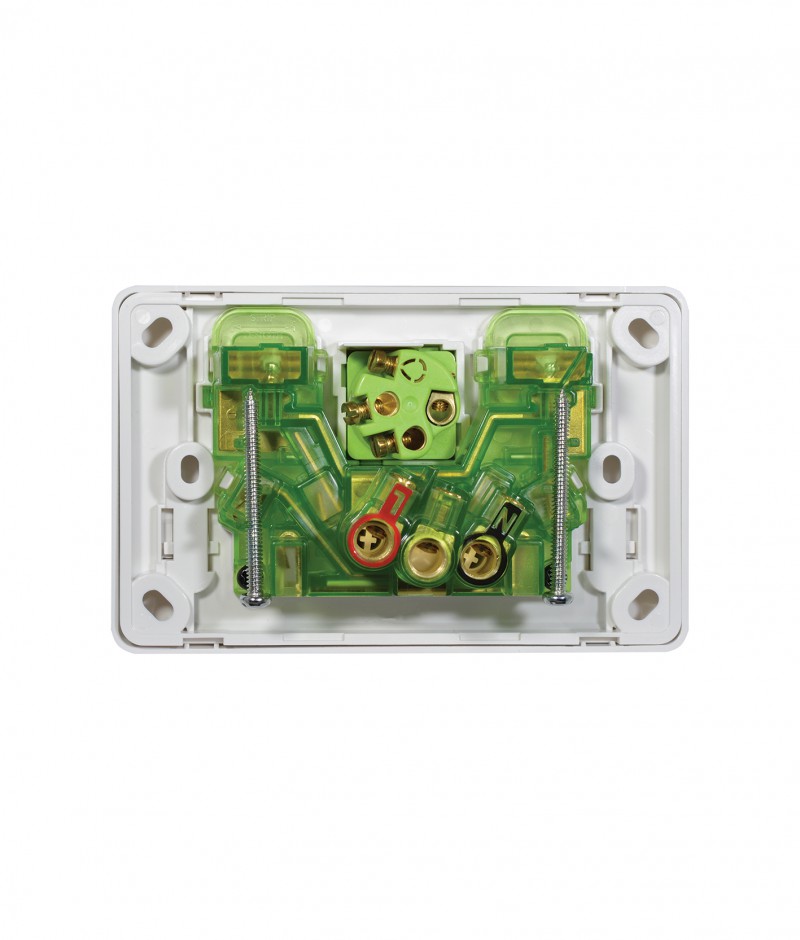

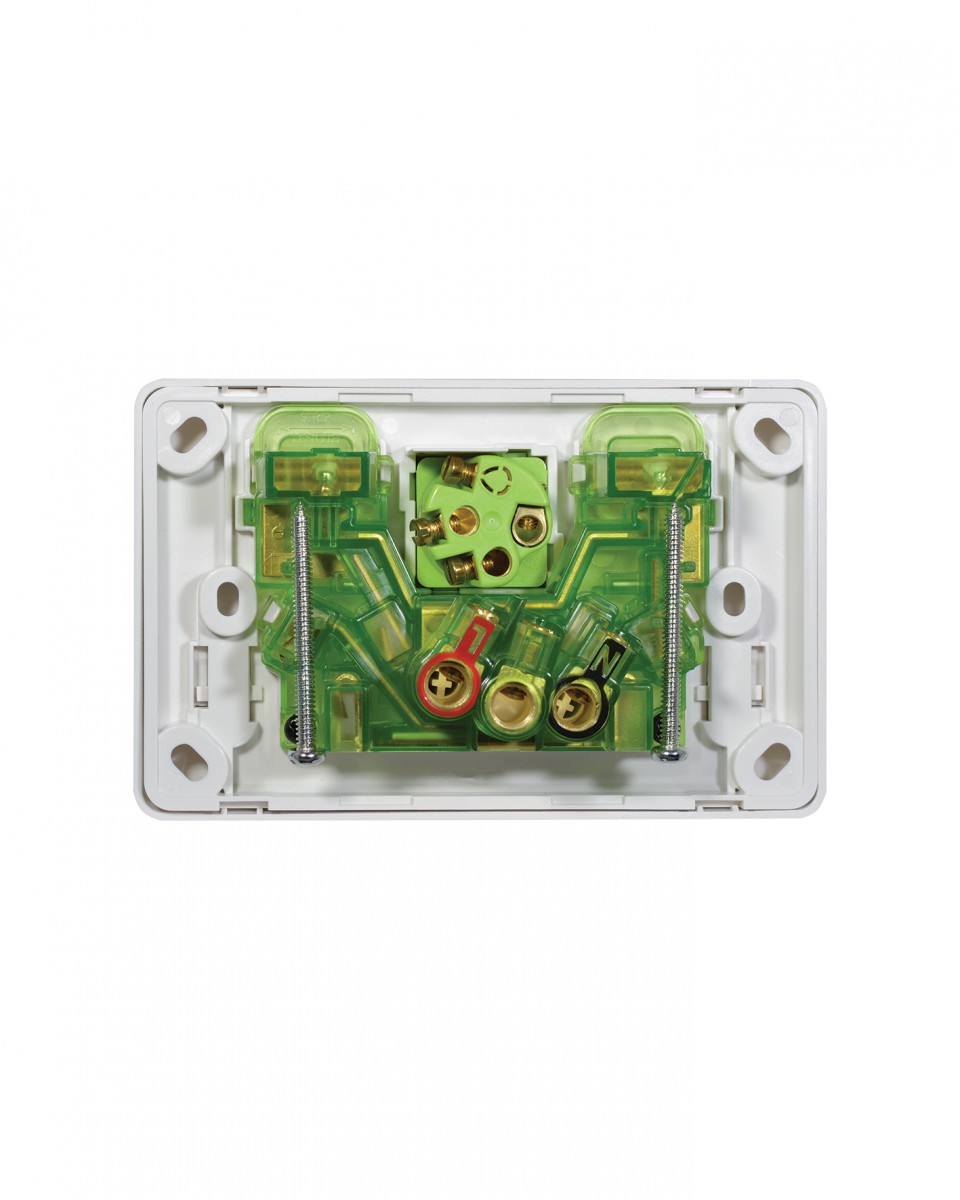

  • Uses brass tunnel terminals that have the screws backed out for easier installation of cabling. Power point terminals have 6mm bore to suit 4 x 2.5mm2 cable. Switch terminals have 4.1mm bore to suit 4 x 1.5mm2.
  • Combination head screws for the socket terminals.
  • Uses ‘Cat Flap’ screw covers for IP rating of mounting screws.
  • Dolly indicator colour green.
  • Covers, plates and dollies are made from UV stabilised polycarbonate to avoid discolouring to yellow.
  • Colour: White.
  • 10 Year Warranty.

View Data Sheet in Downloads for complete product information.
