- Switches approved to AS/NZS3133.
- Socket outlets approved to AS/NZS3112.
- Fits standard Australian wall boxes and mounting accessories that use 84mm mounting centres.

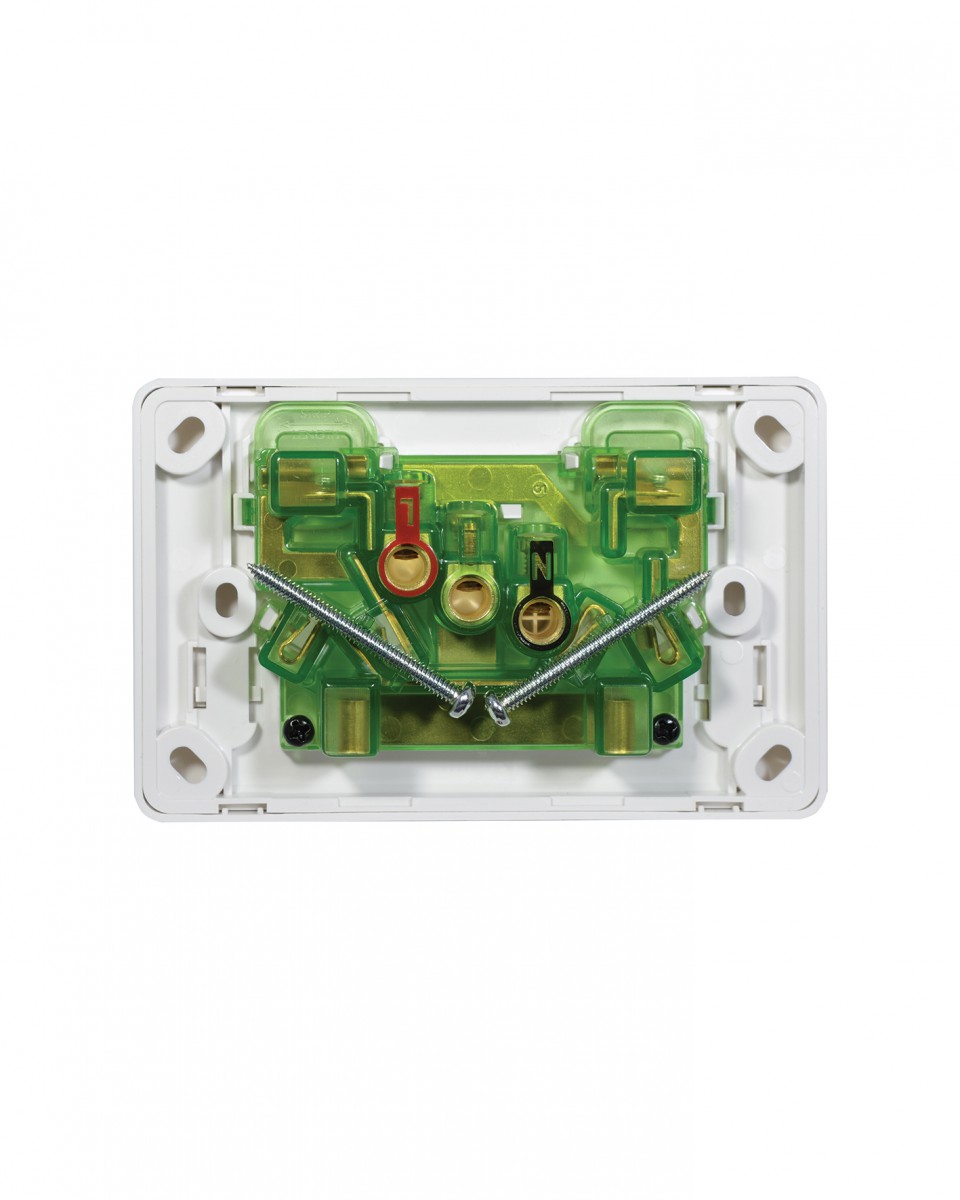

- Uses brass tunnel terminals that have the screws backed out for easier installation of cabling. Power point terminals have 6mm bore to suit 4 x 2.5mm2 cable. Switch terminals have 4.1mm bore to suit 4 x 1.5mm2.
- Combination head screws for the socket terminals.
- Uses ‘Cat Flap’ screw covers for IP rating of mounting screws.
- Dolly indicator colour green.
- Covers, plates and dollies are made from UV stabilised polycarbonate to avoid discolouring to yellow.
- Colour: White.
- 10 Year Warranty.
View Data Sheet in Downloads for complete product information.
