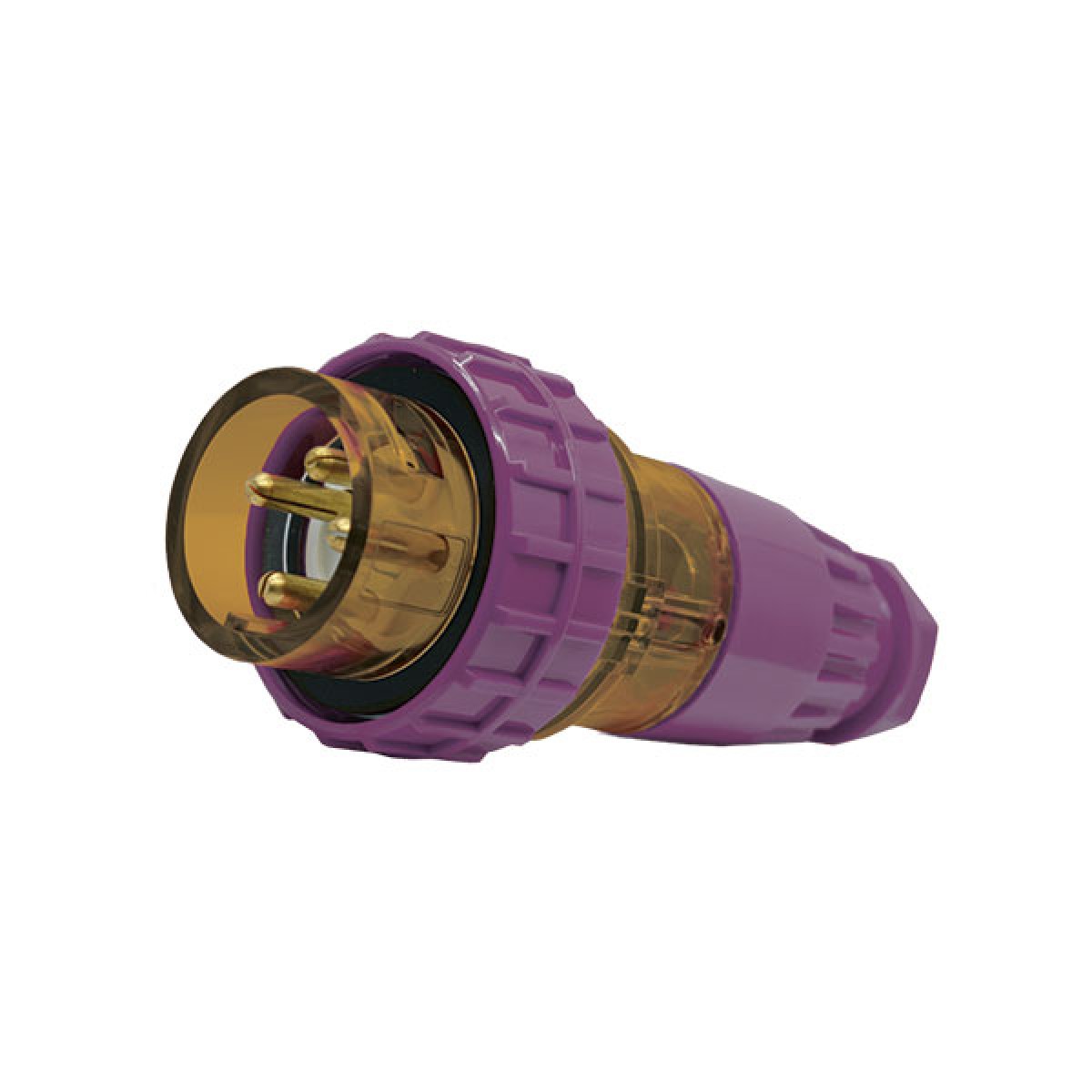

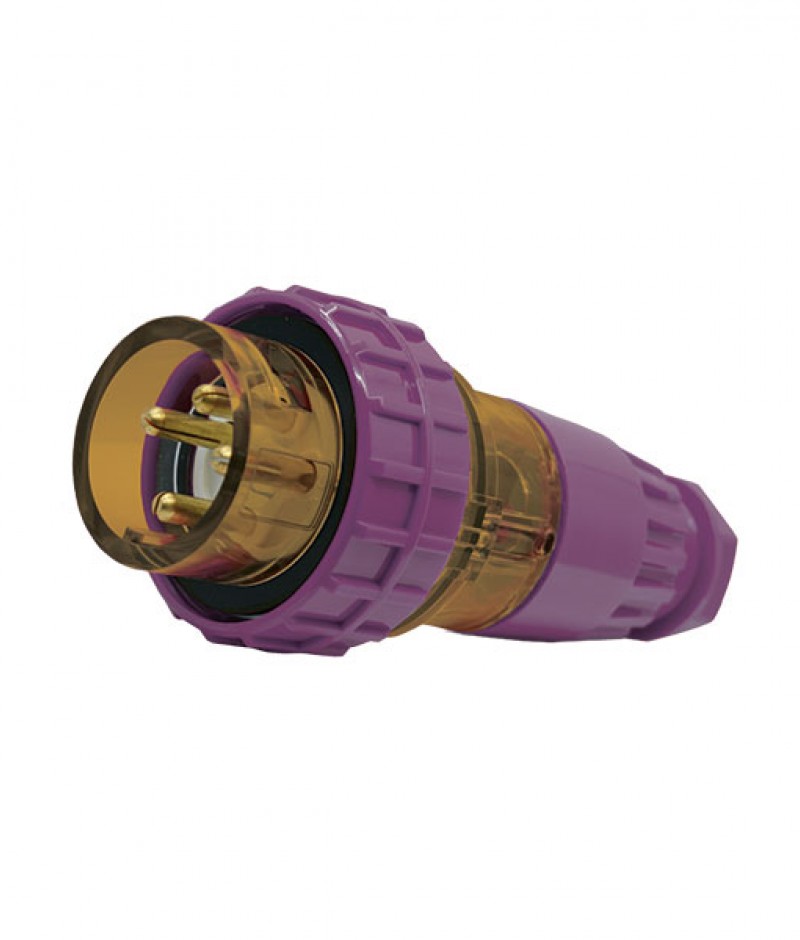

IP66 Straight & Angled Plugs
• Small Single Phase 10A to 20A (250V~)
• Size 1 Single & Three Phase 10A to 20A (250V~ to 500V~)
• Size 2 Single & Three Phase 32A to 50A (250V~ to 500V~)
• 3 Flat Pin, 3 Round Pin, 4 Round Pin, 5 Round Pin.
• 10A, 15A, 20A, 32A, 40A & 50A current ratings.
• Straight body format providing a more traditional design.
• Angled format when space is limited, or to reduce plug & cable protrusion as cable is angled downwards.
• Ribbed Lock ring for secure fitment & gripping with gloved hands.
• Rear cord entry and cable gland ensuring IP66 rating.
• Chemical Resistant Grey for alkaline Applications.
• Insulated pins in accordance to AS/NZS3112 (BUP310RG, BUP315RG, BUP320FRG).
• Internal cable clamp to support electrical connections.
• Size 1 Single and Three Phase suits Smaller to Medium Loads.
• Size 2 Single and Three Phase suits Medium to Large loads.
• Small Extension Sockets 10A and 20A accept cables from ø 6 - 12mm
Size 1 Extension Sockets 10A and 20A accept cables from ø 12 - 16mm
Size 2 Extension Sockets 32A, 40A and 50A accept cables from ø 11 - 16mm
 |
