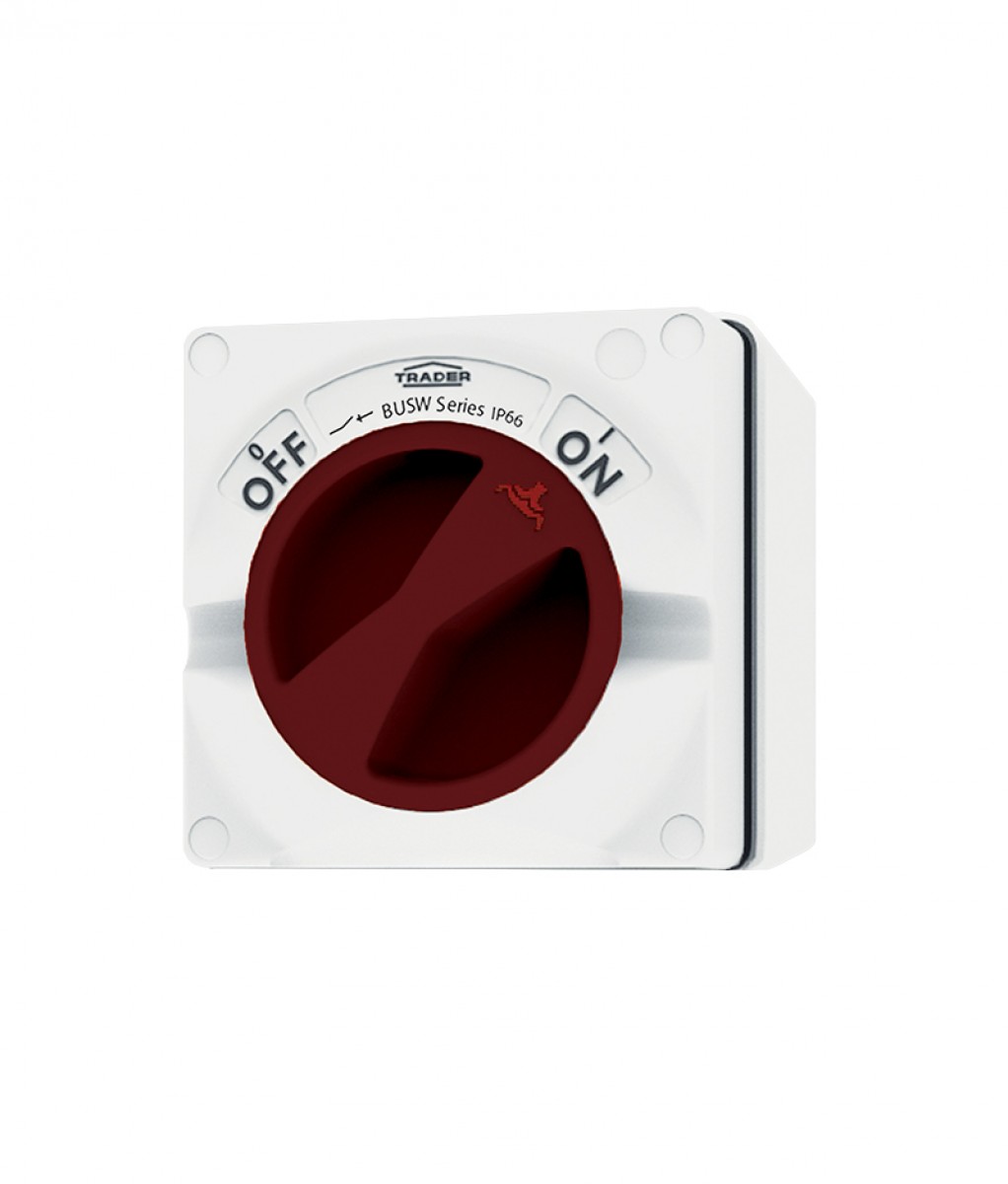

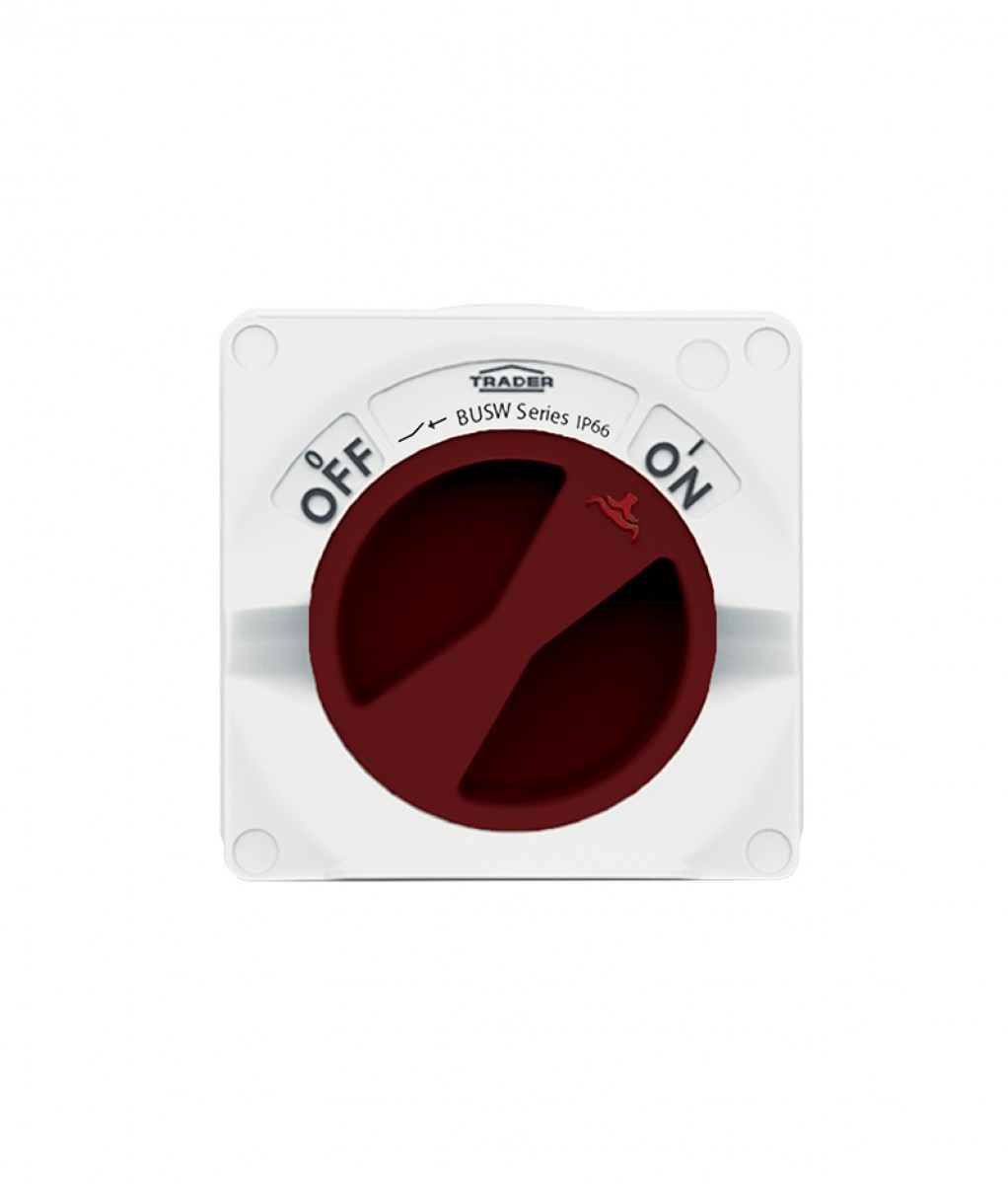

BUSW232RW

• The Buffalo switches have recently been updated with testing for categorization for Isolation and are now marked for use as switch disconnectors.
• The 10A to 20A models have been certified in accordance with AS/NZS3133 and 10A,20A,32A, and 63A have also been tested complied with IEC and AS 60947-3 with the 32A and 63A models being listed on a certificate of suitability.
• The same heavy duty switches are used in our Combinations are available as individual switches for isolation and control applications.
• Heavy Duty terminals with diameter 7.6mm terminals suitable for 25mm2 cable.
• Switch supplied with a large, easy to use knob, suitable for use with heavy industrial gloves. Has a positive, rotary action.
• Switch Knob features two Oval Shape (11 x 9mm) lock off facilities. Suits 9.0mm padlock staple.
• Conduit plugs provided with rubber gaskets to assist IP rating and to aid secure fitment.
• Raised ON/OFF marking to allow visibility in dusty environments.
• Laser etched product marking (no adhesive labels that fall off).
• LED Drill out facility for LED indicators (not supplied).
• Approved to AS/NZS3133 (10A - 20A), AS 60947-3 (Over 32A).(All models tested in accordance and comply with both standards)
• Range includes Double and Three Pole. See the table for product detail as some configurations vary.
• All models have been tested and comply with AS/NZS 3133 M200 motor rating as shown in the table.
• Chemical Resistant White for Acid Applications
• In addition, the Utilization category of AC23A for motors and highly inductive loads is rated at Ie=10A for the 10A models, Ie=20A for 20A, Ie=32 for 32A Models and Ie=50A for 63A.
• Pollution Degree: 2
• Recommended screw torque for corner cover screws 0.6Nm
• Recommended torque for Earth/Neutral fixed terminals 2Nm
• Recommended torque for Switch terminals 2.5Nm
