- This product provides continuous pressure equalisation between the inside of the enclosure and the atmosphere around the enclosure. This ventilation prevents moisture from entering the enclosure via the seals and condensing inside the enclosure. The breathers are made from moulded polyamide with a silicone seal and meet the requirements of degrees of protection up to IP68.
- If cyclic temperature conditions where warm air that can contain moisture, is prevented from escaping it can cause internal condensation that forms when cooling, and can build up to cause failures, as the air cools, water droplets settling on live parts and causing electrical faults.
- The breather allows the pressure to equalise internally and externally, and warm air can pass to the outside as the system cools helping to prevent this issue.

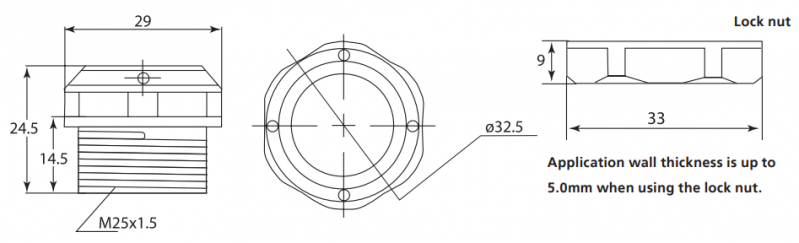

- If the wall of the enclosure is thick and pre-threaded for 25mm, then the lock nut is not necessary providing the breather can be tightened against the seal and lock in place.
- The BUBR can also be mounted on the side of an enclosure if necessary to assist with air flow.
- This kit contians the BUBR breather, lock-nut and flat seal
Discover more, view Data Sheet in Downloads or watch Trader’s KNOW YOUR PRODUCT VIDEOS here.
