PUBIG5

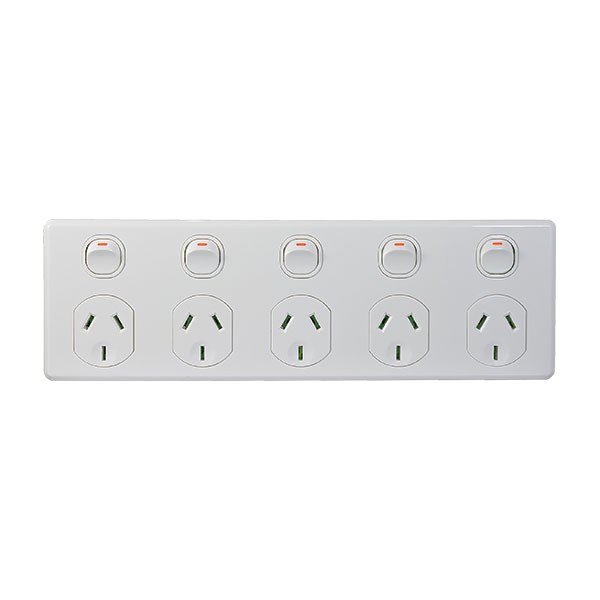

Power Point Switched 5 Gang Double Pole 10A 250V ac Fits Standard 84mm Mounting Centres
SKU
PUBIG5
Box Qty
1
Categories
Power Points
Features
- Double pole surface mounted switched Five gang power point.
- 10A at 250V~

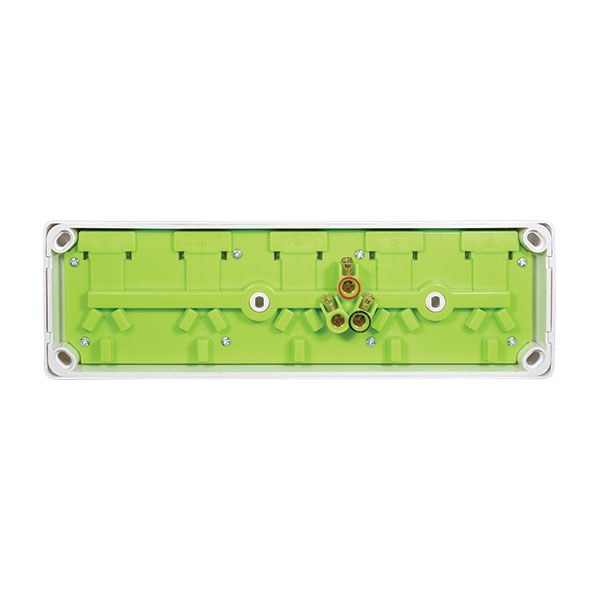

- Diameter 6mm terminal bores to suit 4 x 2.5 mm2 cables. 6mm terminal bore.
- Fits 84 mm mounting centres.
- Dolly indicator colour orange.
- Covers, plates and dollies are made from UV stabilised polycarbonate to avoid discolouring to yellow.
- Colour: White.
- Mounting blocks include backing plates for situations where fully enclosed insulation is required.
- Colour: White / Black / Matt White / Matt Black also stocked - please check availability.
- Approved to AS/NZS3112.
- The BIG5 uses the same features and mounting system as the BIG4, but has the additional switched power point for convenience.
Product specs
Dimensions
76mm x 30mm x 244mm
Voltage
250
Amperage
10
Poles
2
Material
Polycarbonate
Surface finish
Gloss
PUBIG5 Data Sheet
Download to see product technical details.
Puma Datasheets
Puma
Download to see technical details for the complete Puma range.
Puma Range Flyer
Puma
Download to explore the full Puma range.
Why Choose Puma
Puma
Click to discover why Puma is the ideal choice for your needs!
Shelf Flyer
Puma
Download to discover more about this product.
PUBIG4MB PUBIG5MB Data Sheet
Download to see product technical details.
Cutting Template
Puma
Download to see product Cutting Template
Puma Power Points & Switches
Puma
Know Your Product - Watch this quick product overview to discover the key features and benefits.
