MEPBE - Trader (GSM Electrical)


MEPBE

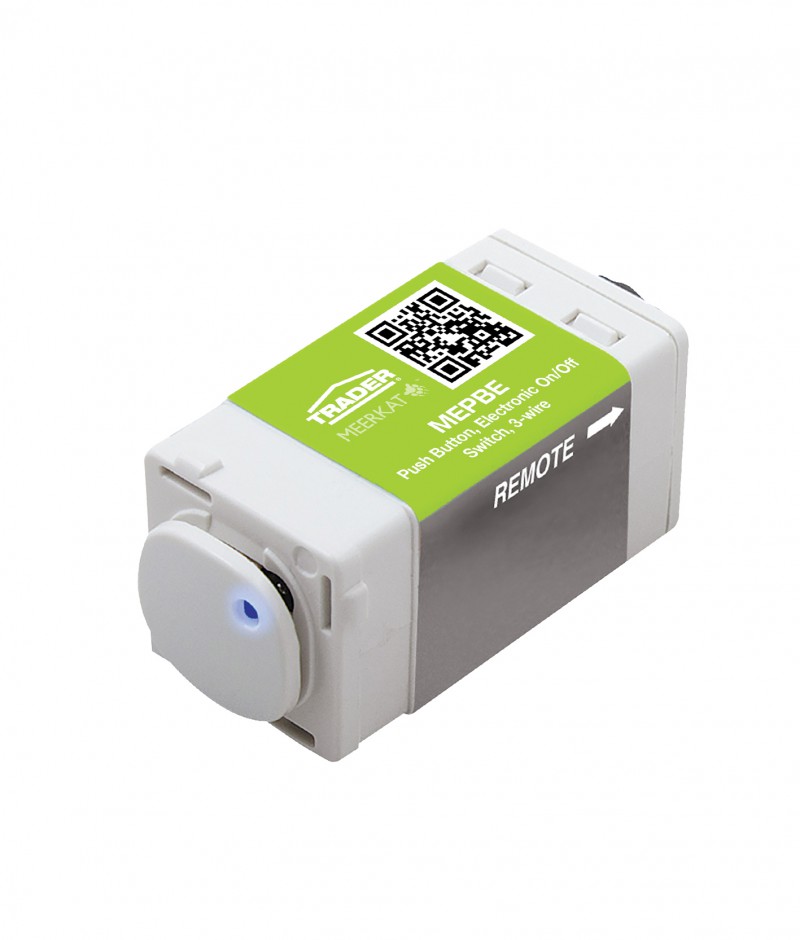

Meerkat - Push Button, Electronic On/Off Switch, 3-wire

Unit(s)
SKU: MEPBE Box Qty: 1 unit Categories: Meerkat Push Button
  • Soft touch push button ON/ OFF switch.
  • Blue LED indicates device status.
  • Returns to OFF after loss of power.

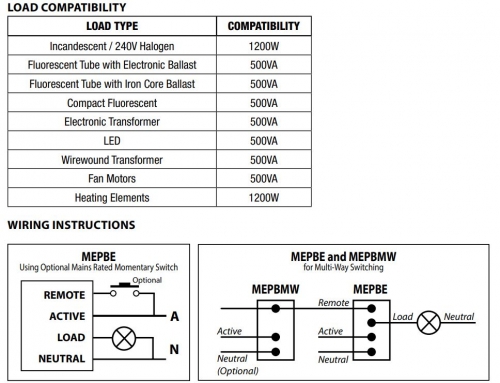

  • Compatible with a wide range of load types including wire wound transformers & fan motors.
  • Compatible with Trader and Clipsal* Style wall plates.
  • Multi-Way Switching compatible with the MEPBMW Push Button, Multi-Way Remote, Dimming and On/Off.

OPERATING CONDITIONS

  • Operating Voltage: 230 – 240V a.c. 50Hz
  • Operating Temperature: 0 to +50 °C
  • Compliance Standard: CISPR15, AS/NZS 3100, AS/NZS 60669.2.1
  • Maximum Load: 1200W / 500VA
  • Maximum Current Capacity: 5A
  • Terminals: Screw Terminals suit 0.5mm2 to 1.5mm2 stranded cable (bootlace terminal recommended)

Note: Operation at temperature, voltage or load outside of the specifications may cause permanent damage to the unit.

View Data Sheet in Downloads for complete product information.
