HPISWXL363

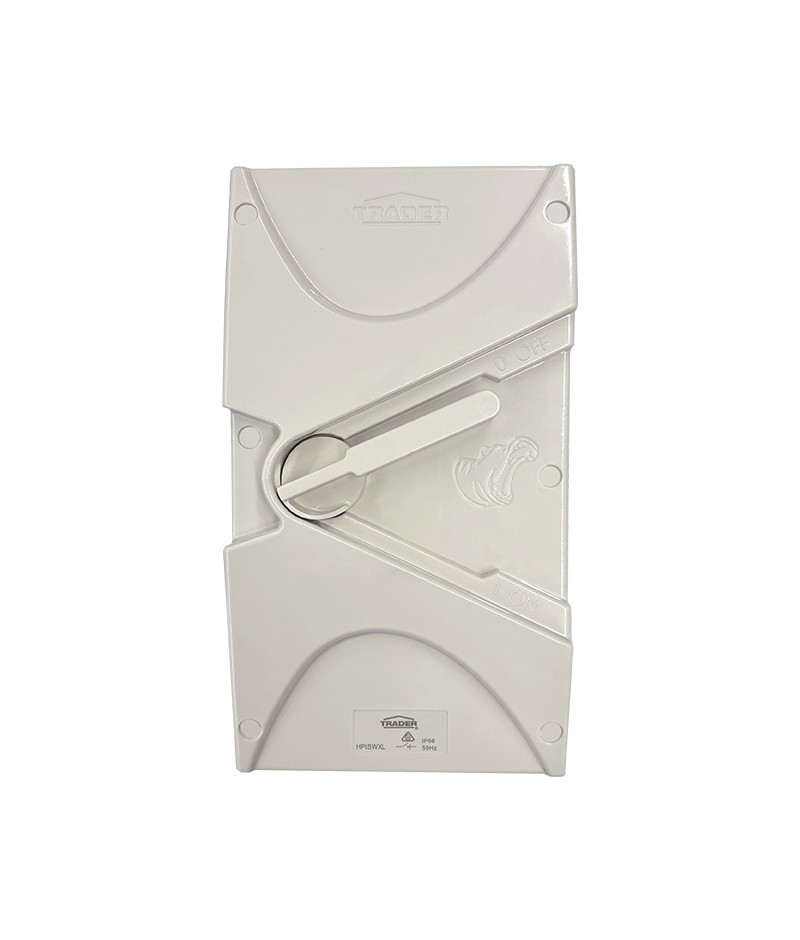

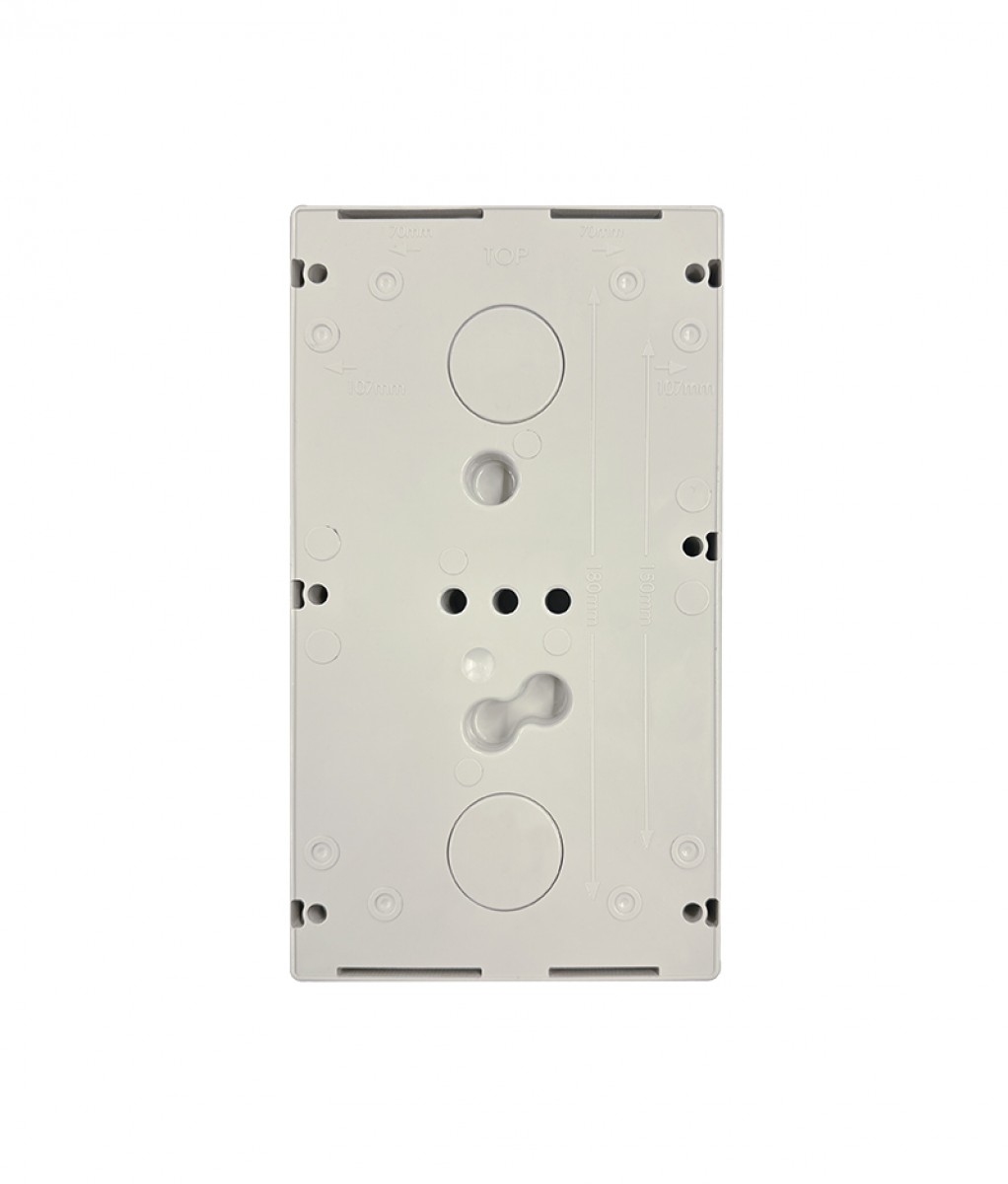

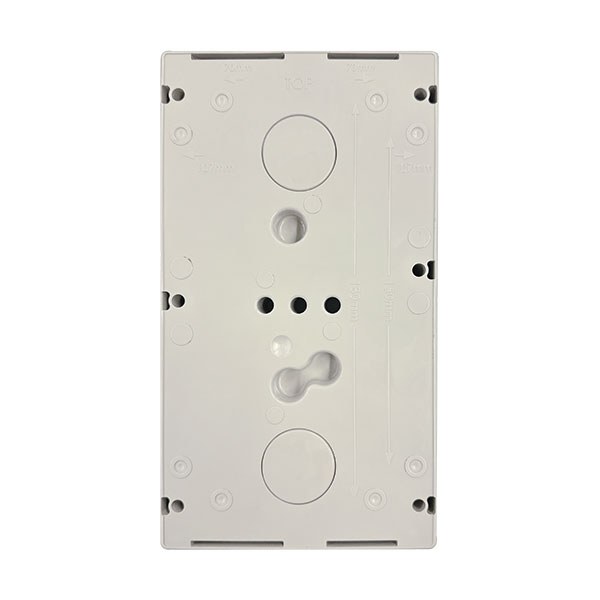

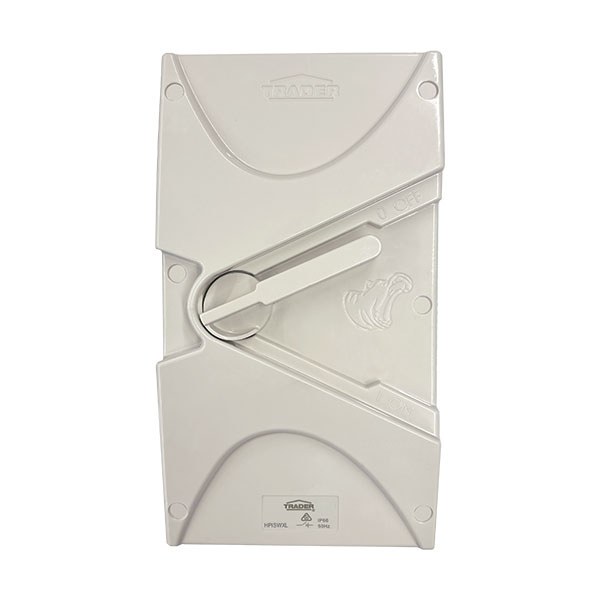

Isolator Switch Weatherproof IP66 63A 440V 3 Pole Extra Large Grey
SKU
HPISWXL363
Box Qty
1
Categories
Isolators
Features
- Hippo Isolators are tested to AS/NZS3133 and AS/NZS IEC60947-3.
- The Hippo larger enclosures feature twin 40mm & 32mm threaded entries both top and bottom.
- The internal isolator switch modules are base mounted to provide a stable platform for wiring.
- Packaging lid features cutting template for easy marking out.
- UV stabilised
- Colour: Grey. The switches feature:
- Combination head terminal screws
- Combination head earth and neutral terminal screws
- Alignment sleeves on switch housing guides screwdriver into terminal screws, reduces screwdriver tips jumping out.
- Terminal bores have plenty of space for wiring (see table for sizes)
- Pad lock
Product specs

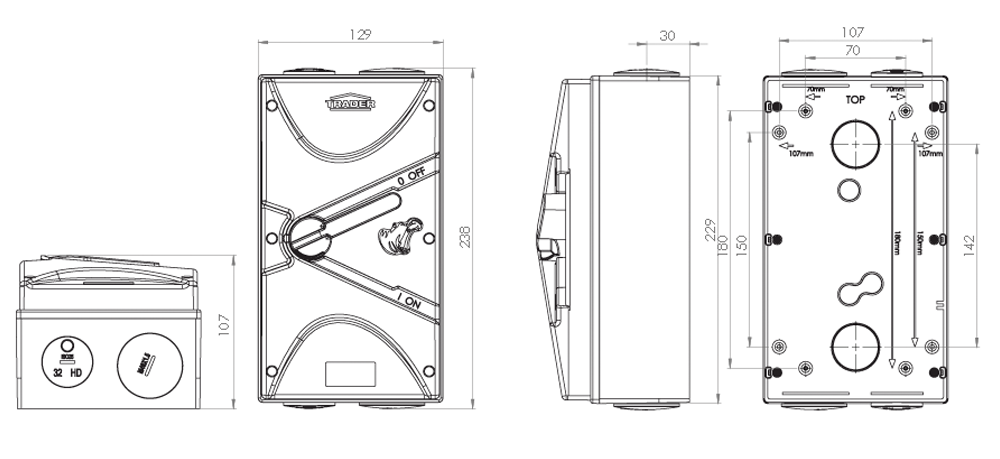

Dimensions
235mm x 130mm x 115mm
Material
Polycarbonate
Surface finish
Gloss
