• Switch socket rated 10A 250V ac.
• Suitable for USB C applications and performs with the following characteristics:
• USB input 230-240V ~; 50Hz; max 0.5A
• USB-C1 (left output port) C2 (right output port)
• USB-C1 output: DC 5V/3A: DC 9V/3A: DC 12V/2.5A: DC 15V/2A: DC 20V1.5A: PD 30W max.
• USB-C2 output: DC 5V/3A: DC 9V/3A: DC 12V/2.5A: DC 15V/2A: DC 20V1.5A: PD 30W max.
• USB-C1 +C2 output: USB-C1: DC 5V/3A: DC 9V/3A: DC 12V/1.67A: PD 20W max + DC 5V/2A max.
• Socket tested in accordance with AS/NZS 3112.
• USB tested in accordance with IEC61558-2-16 and AS/NZS 61558.1.
• Not suitable for laptops requiring larger power requirement.

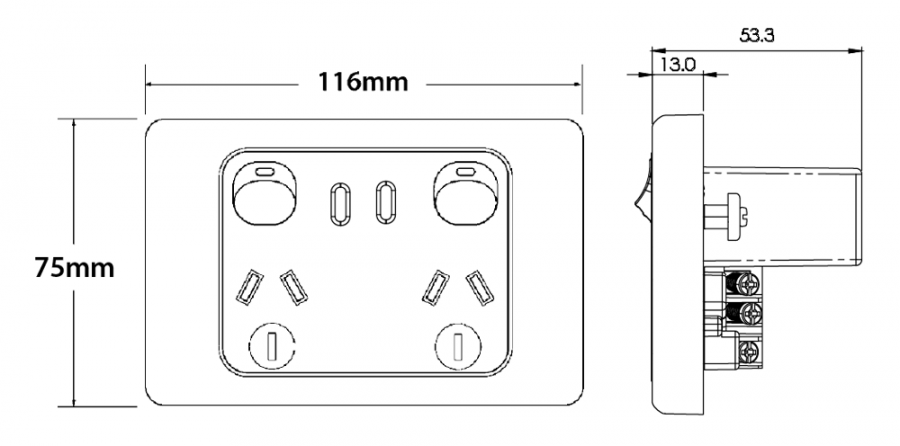

• Fits wall boxes and mounting accessories.
• Surround and dollies are made from UV stabilised polycarbonate to avoid discolouring to yellow.

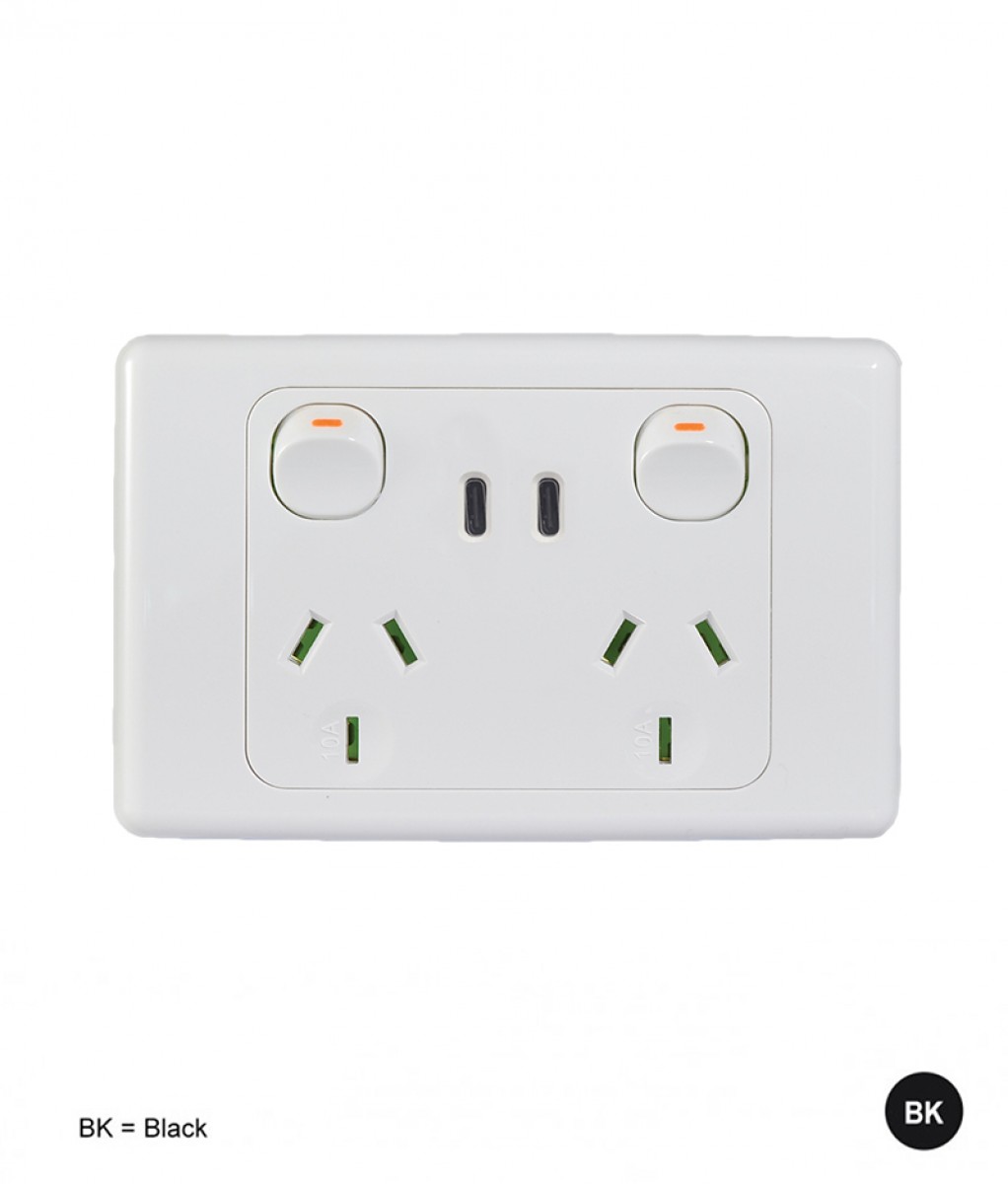

• Standard colours are white and black.
 |
