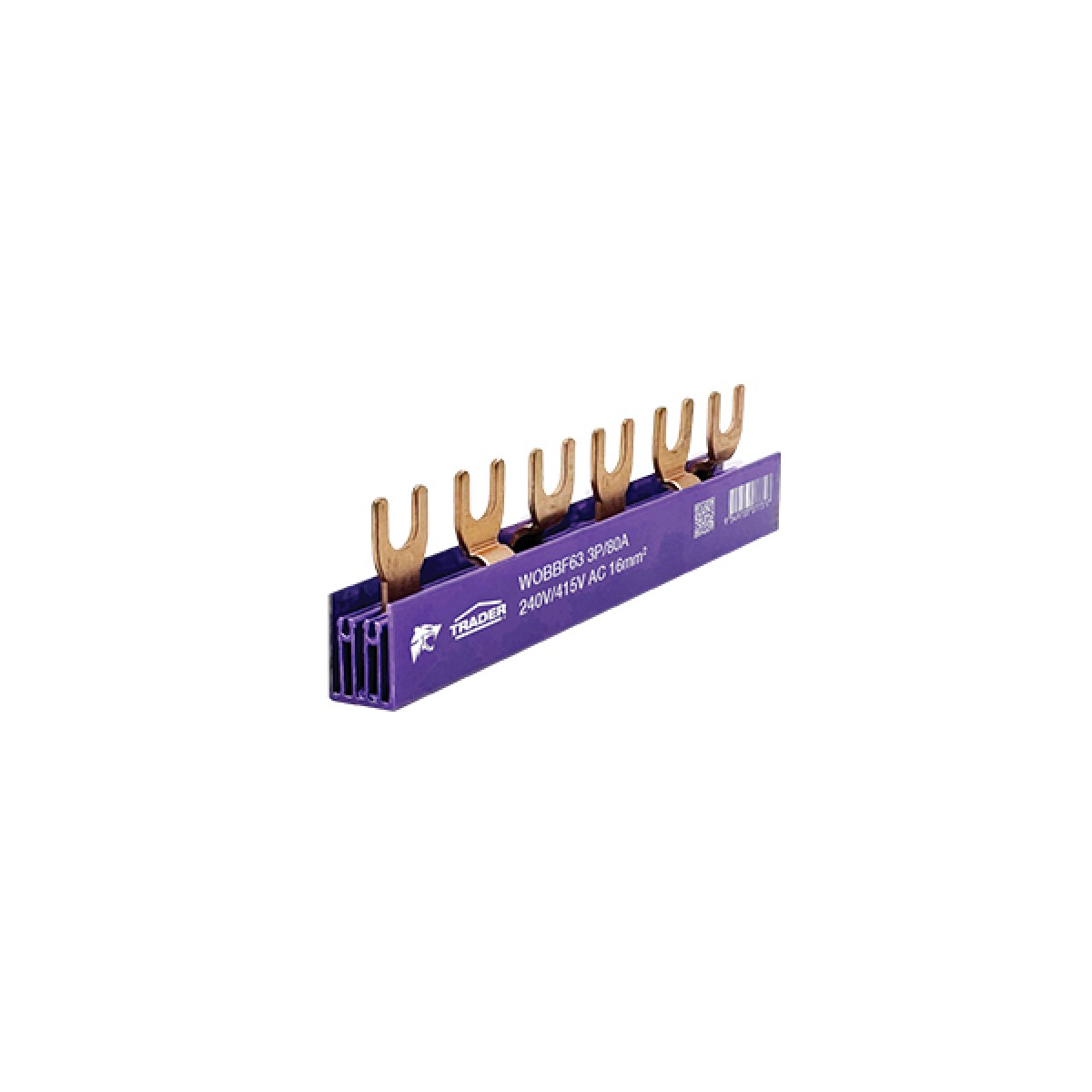

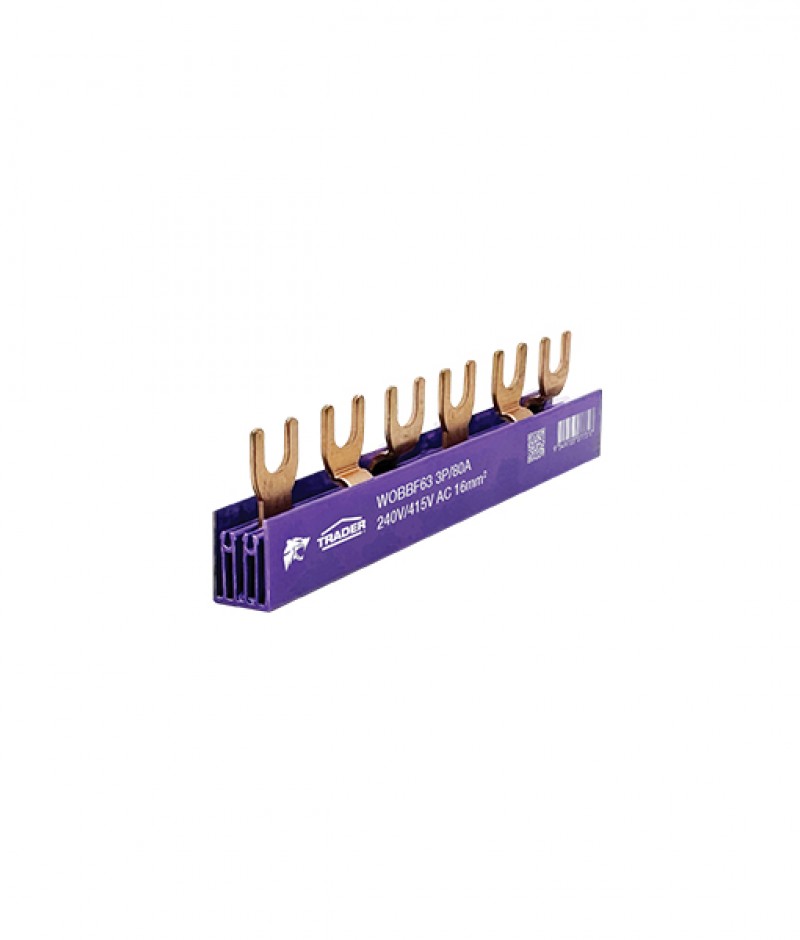

• This convenient bus bar has been designed to suit small board installs where a 3 phase RCD is used to protect 1 MCB on each of the 3 phases (or a 3pole MCB)
• Based on the larger 80Amp end feed 18 way model , this shorter
precut model is ideal for small three-phase applications
• Designed for three phase feed in for Active
• Rated current In, busbar comb, end feed 80A
• Rated Voltage 230V/400V
• Type connection Fork type
• Number of phases 3
• Number of modules 6
• Insulated sleeve
• Not Suitable for devices with N-conductor
• Module width 18mm
• Cross section 16mm²
 |
