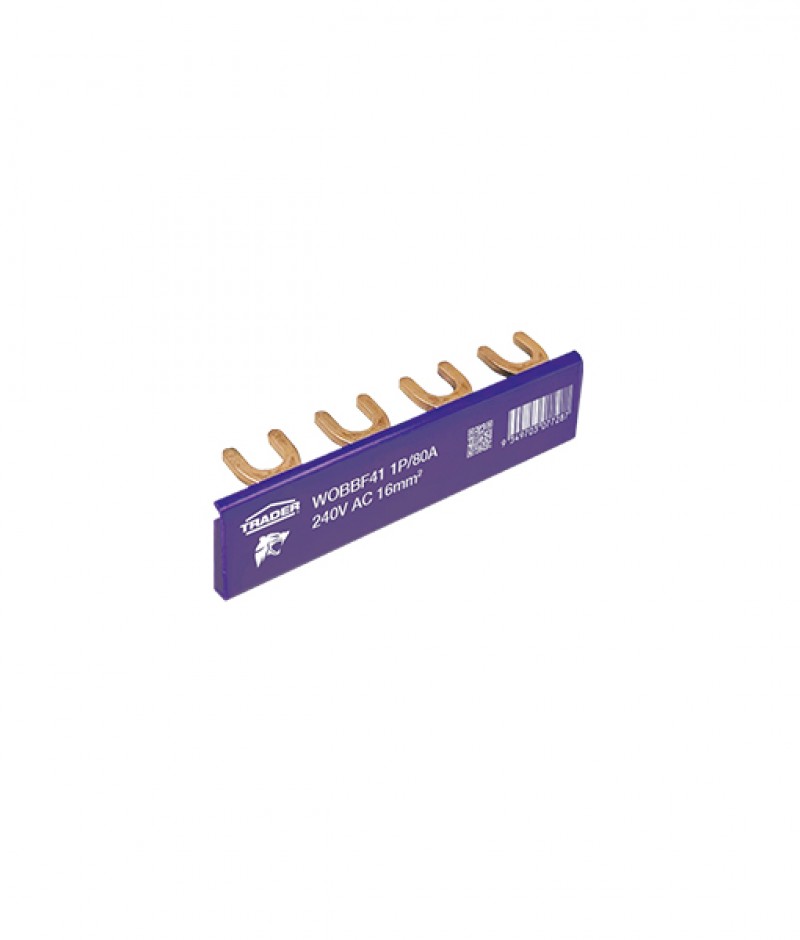

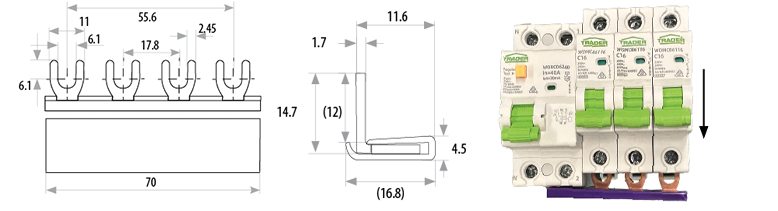

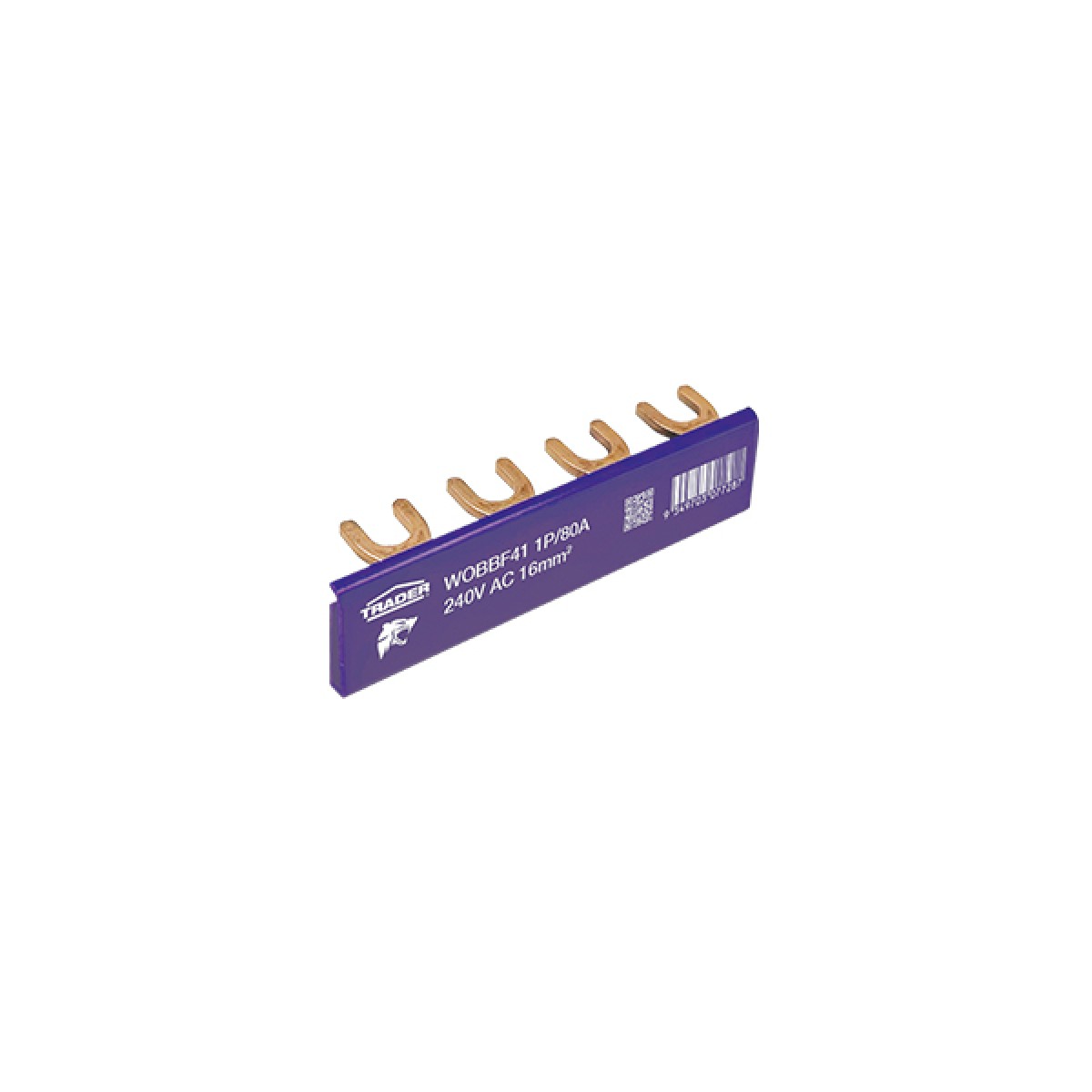

• This convenient bus bar has been designed to suit small board installs where a 2-module wide RCD is used to protect 3 MCBs
• Based on the larger 80Amp end feed 18 way model , this shorter precut model is ideal for small single phase applications
• Designed for single pole feed in for Active
• Rated current In, busbar comb, end feed 80A
• Rated Voltage 230V
• Type connection Fork type
• Number of phases 1
• Number of modules 4
• Insulated sleeve
• Not Suitable for devices with N-conductor
• Module width 18mm
• Cross section 16mm²
 |
