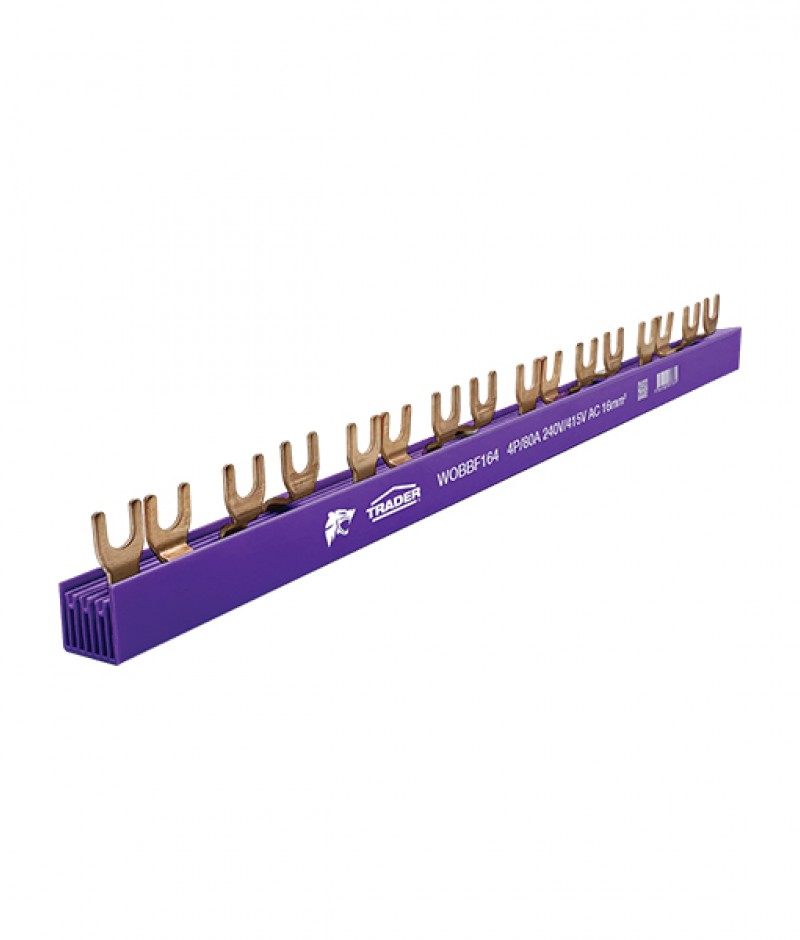

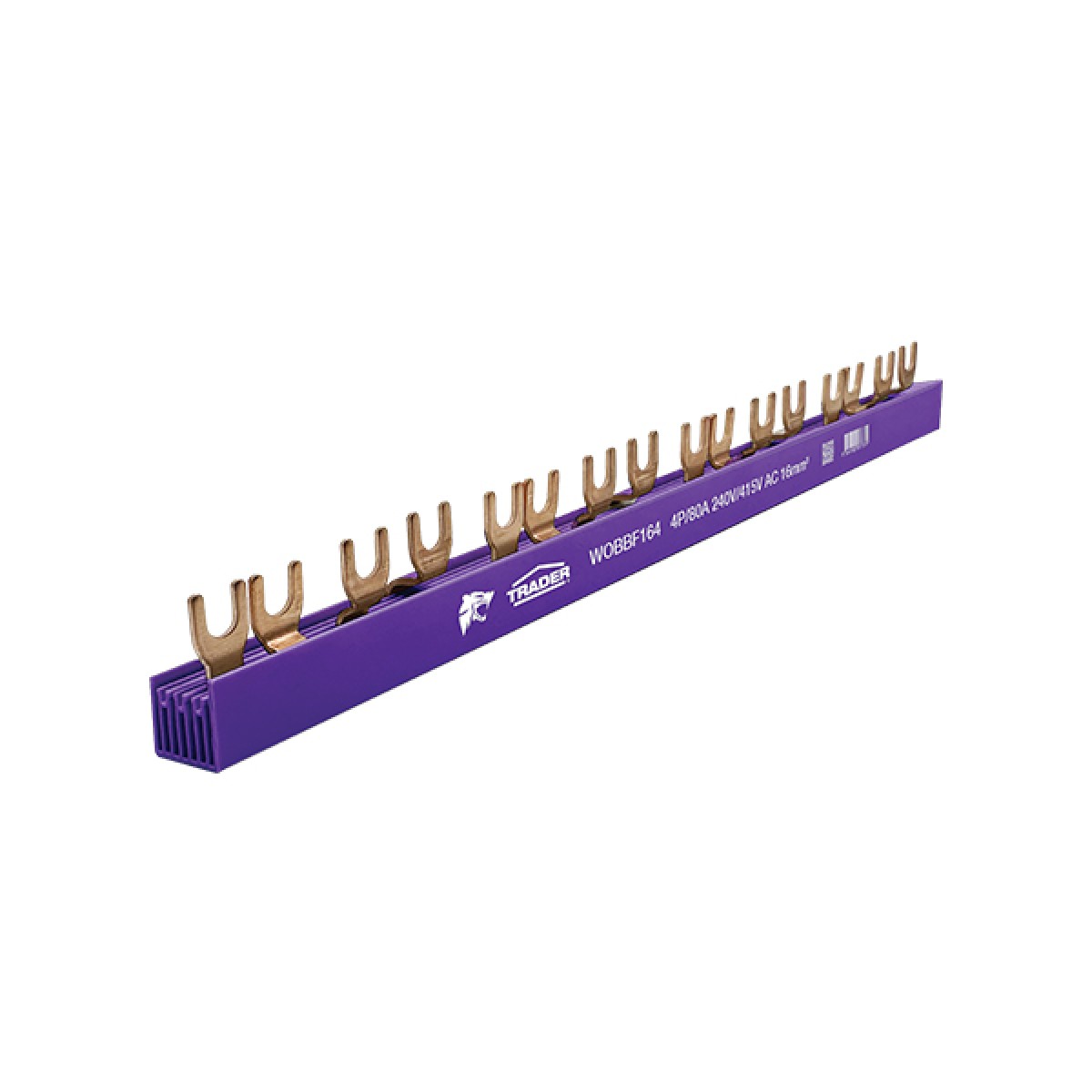

• This 16 way 4 pole bus bar is designed to suit applications for 4 pole RCBO’s where the 4th pole links the Neutral
• Designed for three phase feed in for Active also contains a Neutral Bar feature
• Rated current In, busbar comb, end feed 80A
• Rated Voltage 230V/400V
• Type connection Fork type
• Number of phases 3+N
• Number of modules 16
• Insulated sleeve
• Suitable for devices with N-conductor
• Module width 18mm
• Cross section 16mm²
 |
