SNSWV2GWW - Trader Electrical Accessories


SNSWV2GWW

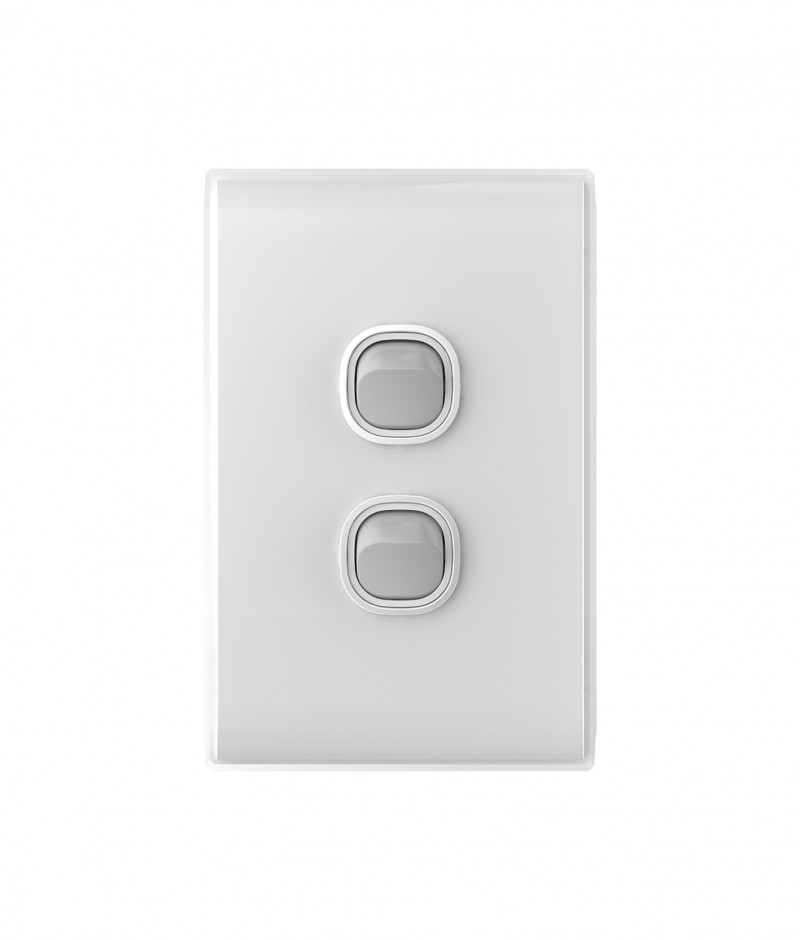

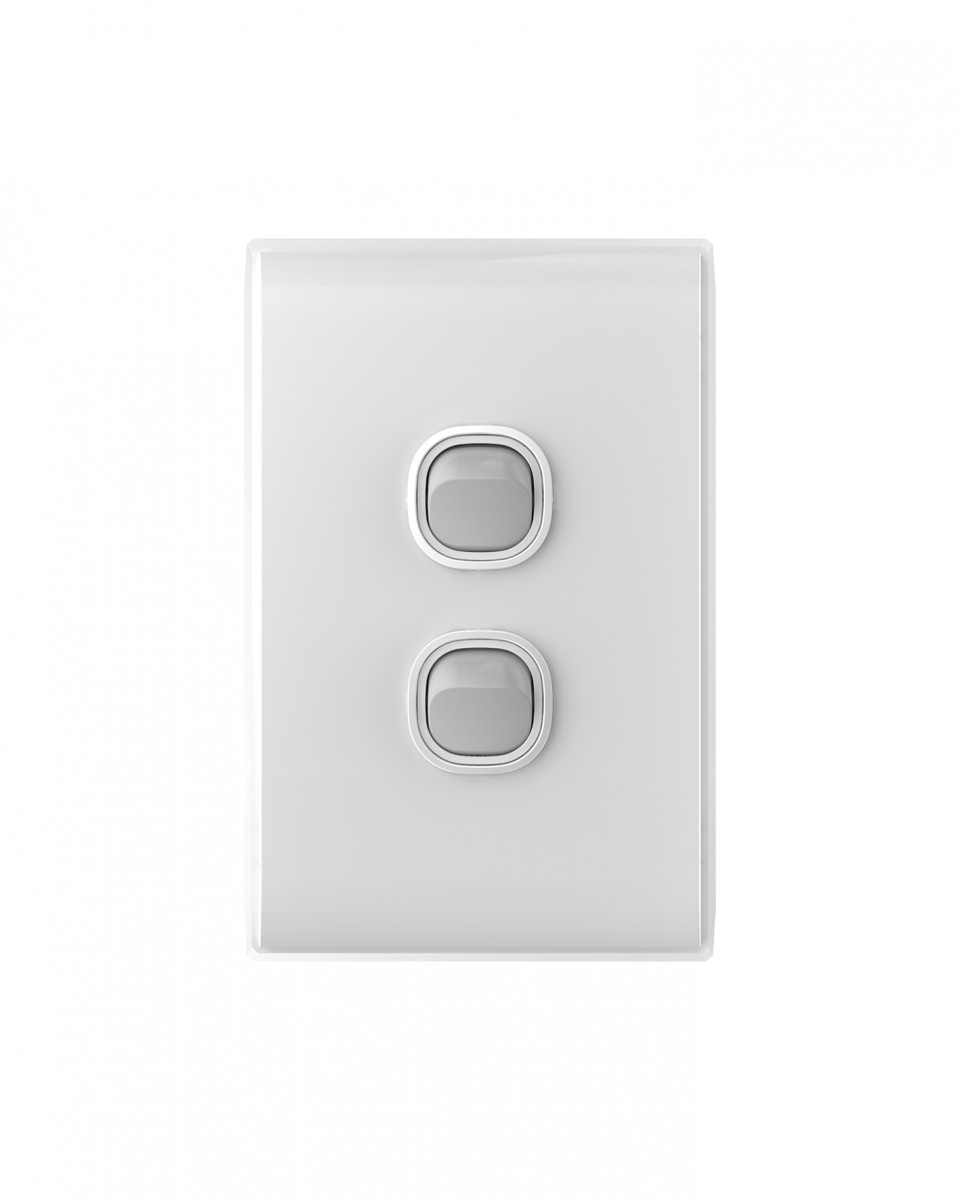

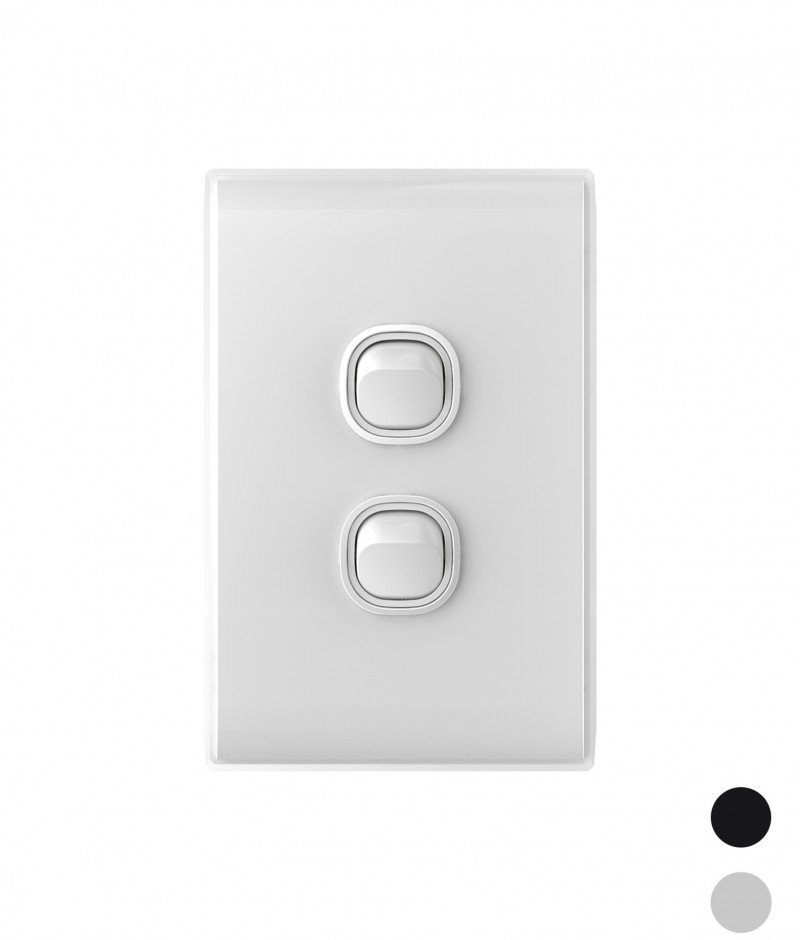

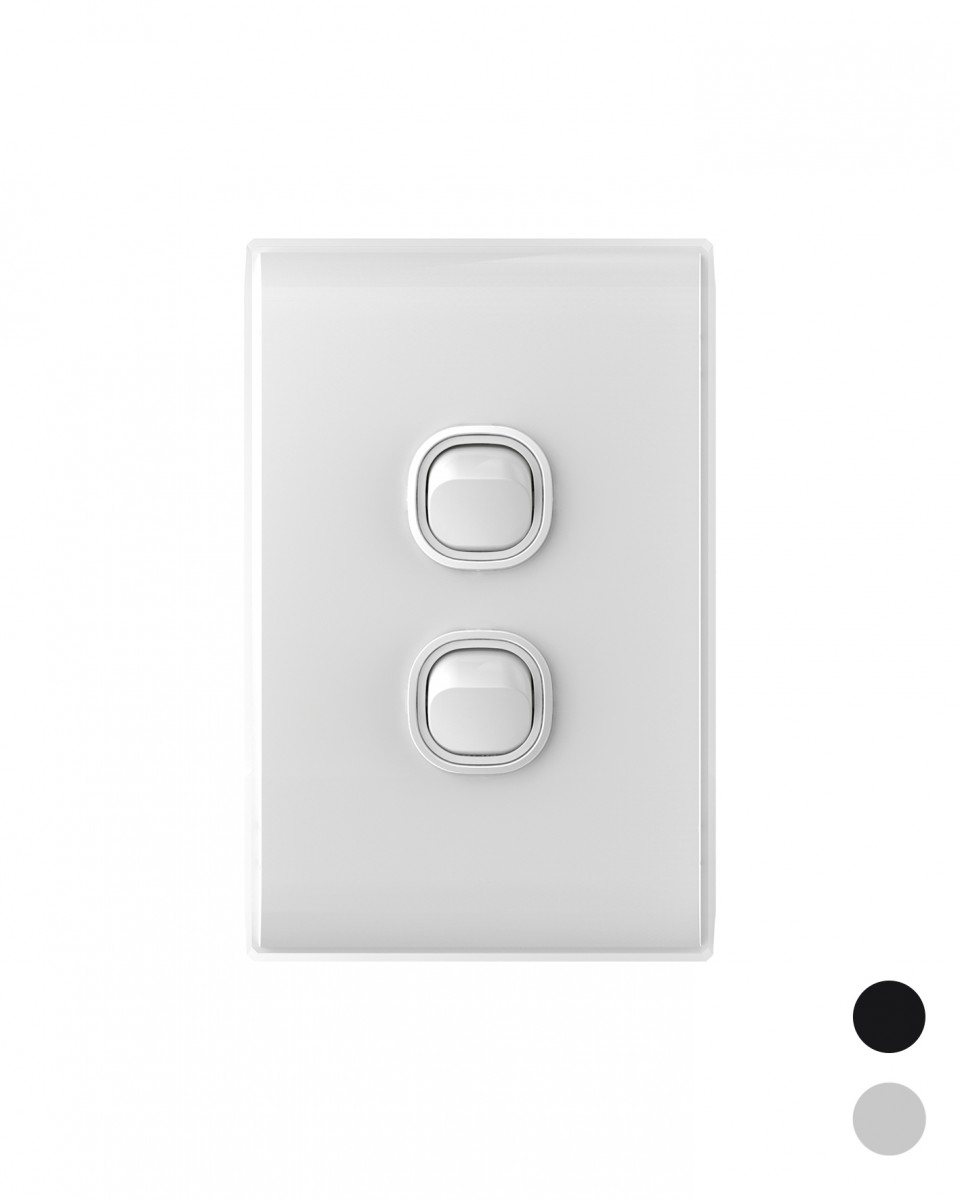

Snow Leopard - Switch Vertical 2 Gang 16AX/20A 250V~, White Cover, White Grid

Unit(s)
SKU: SNSWV2GWW Box Qty: 10 units Categories: Snow Leopard Switches
  • Switches are rated 16AX/20A 250V~ and approved to AS/NZS60669-1.
  • Fits standard Australian wall boxes and mounting accessories that use 84mm mounting centres.

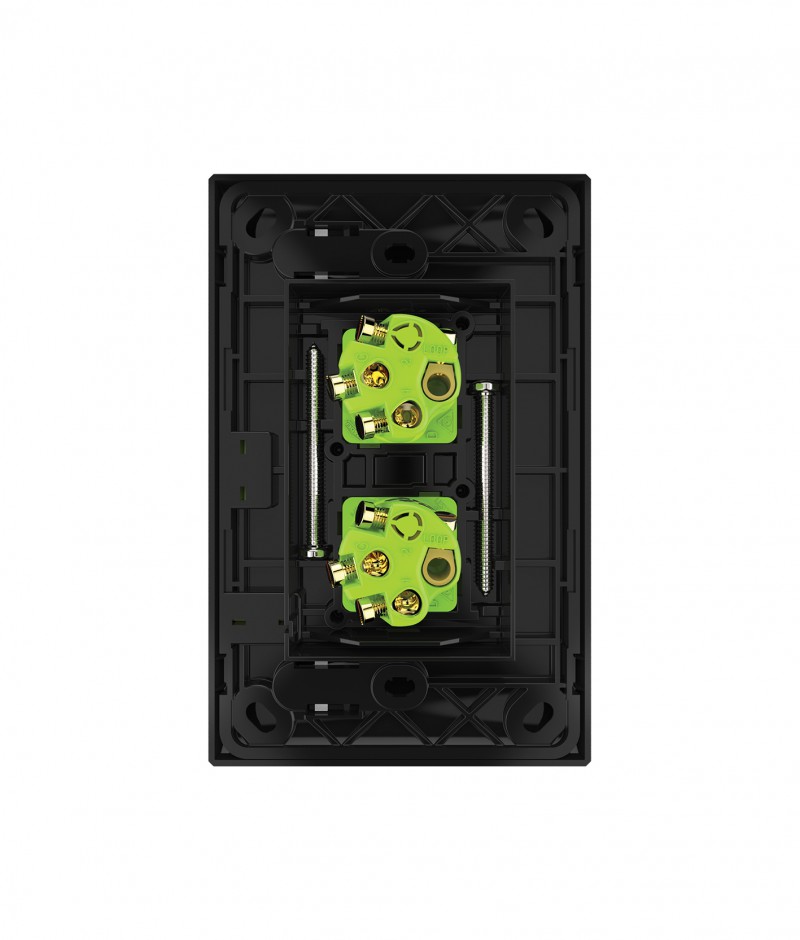

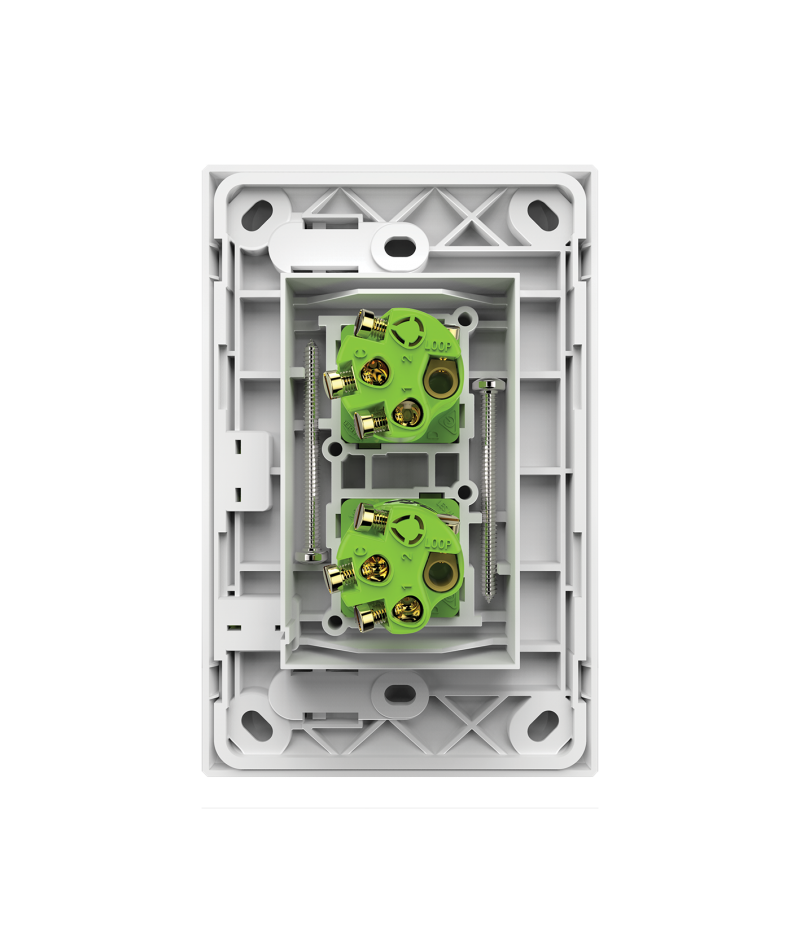

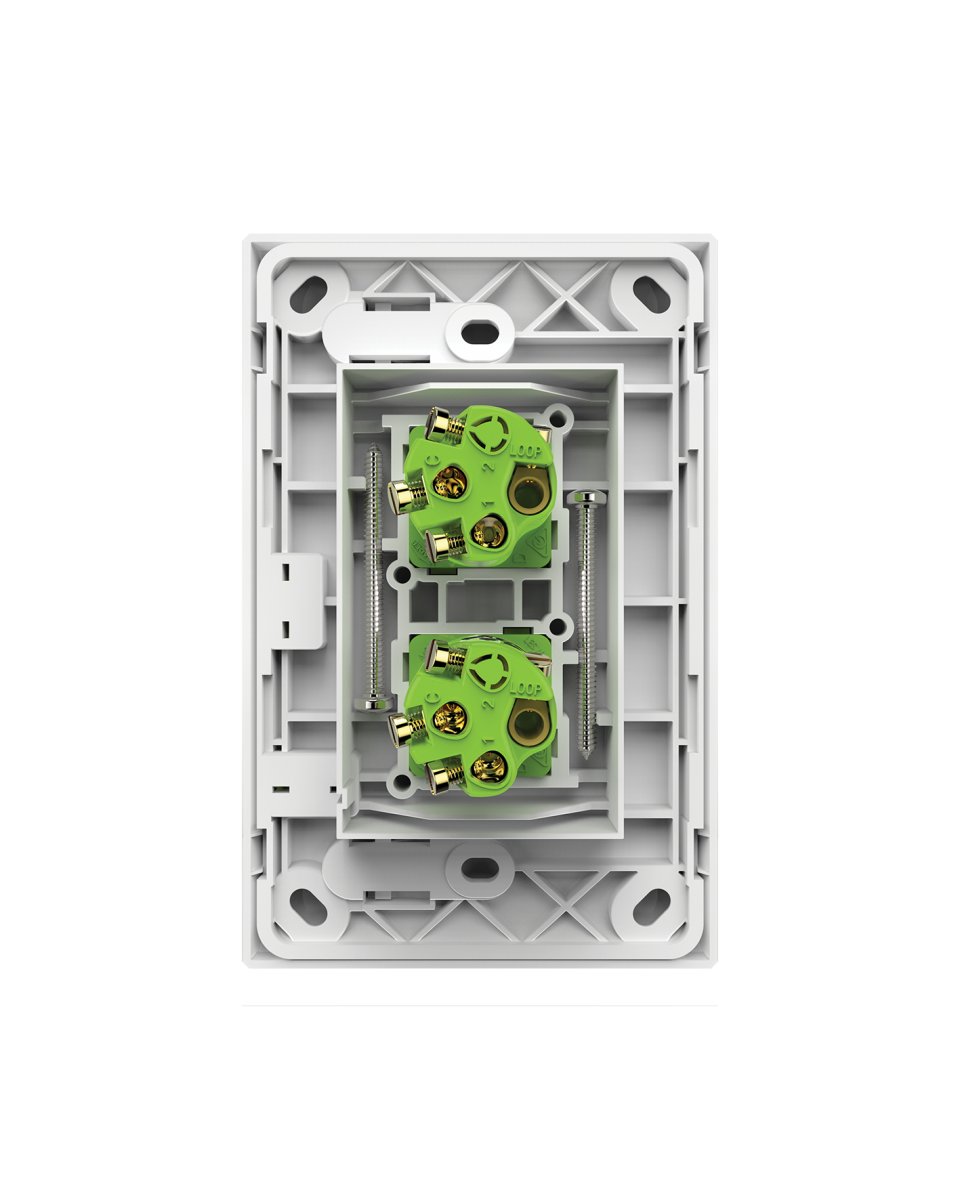

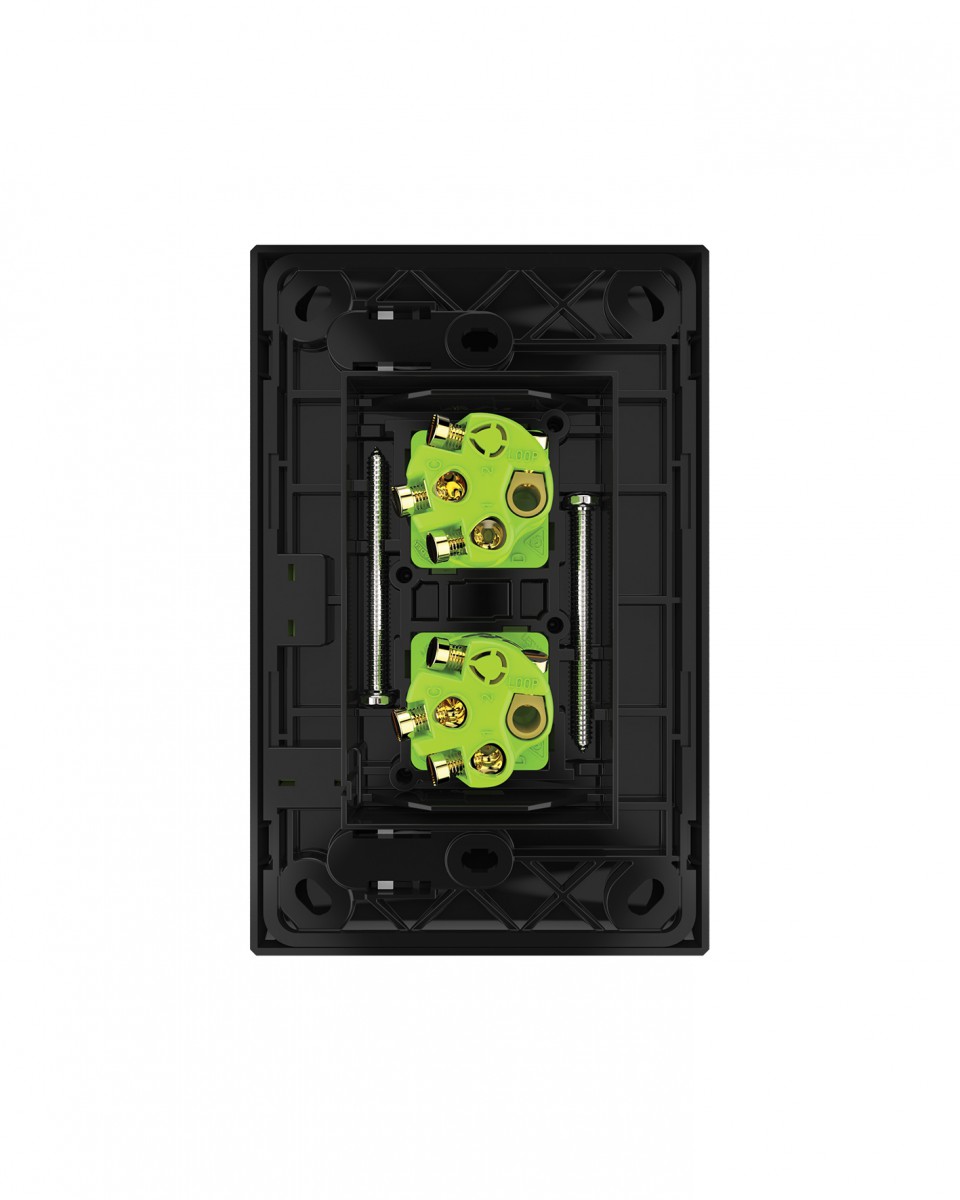

  • Uses brass tunnel terminals that have the screws backed out for easier installation of cabling.
  • Switches are two way with looping terminal and suit 4 x 1.5mm2 cabling with 4.1mm bore.
  • Slotted head screws for the terminals.
  • Uses ‘Cat Flap’ screw covers for IP rating or mounting screws.
  • Covers, plates and dollies are made from UV stabilised polycarbonate to avoid discolouring to yellow.

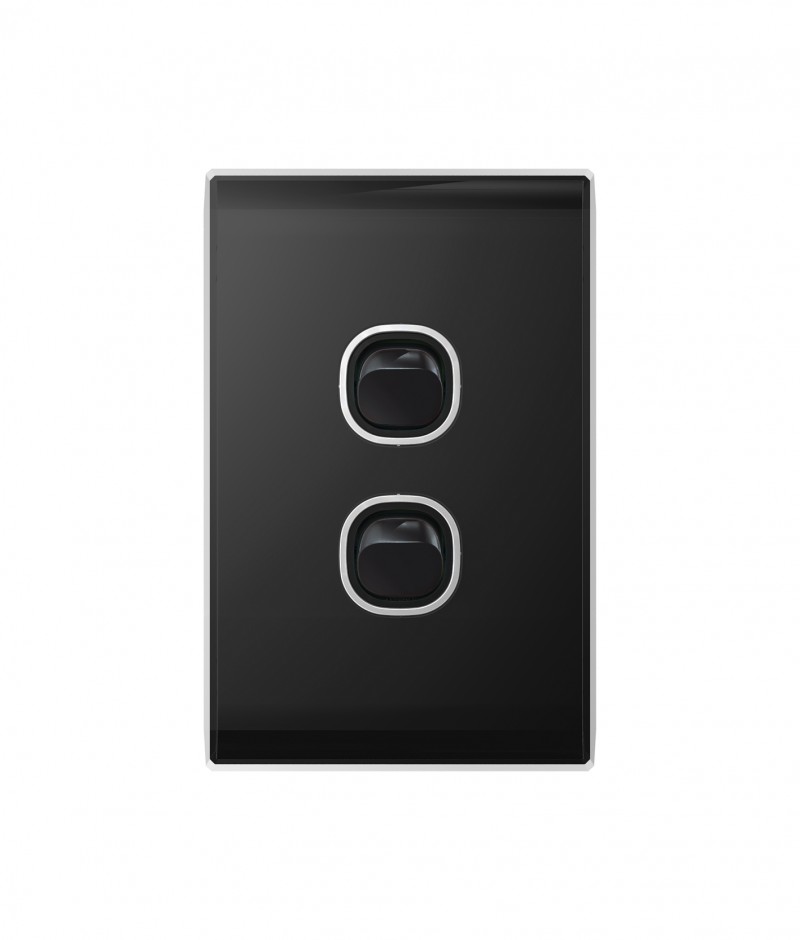

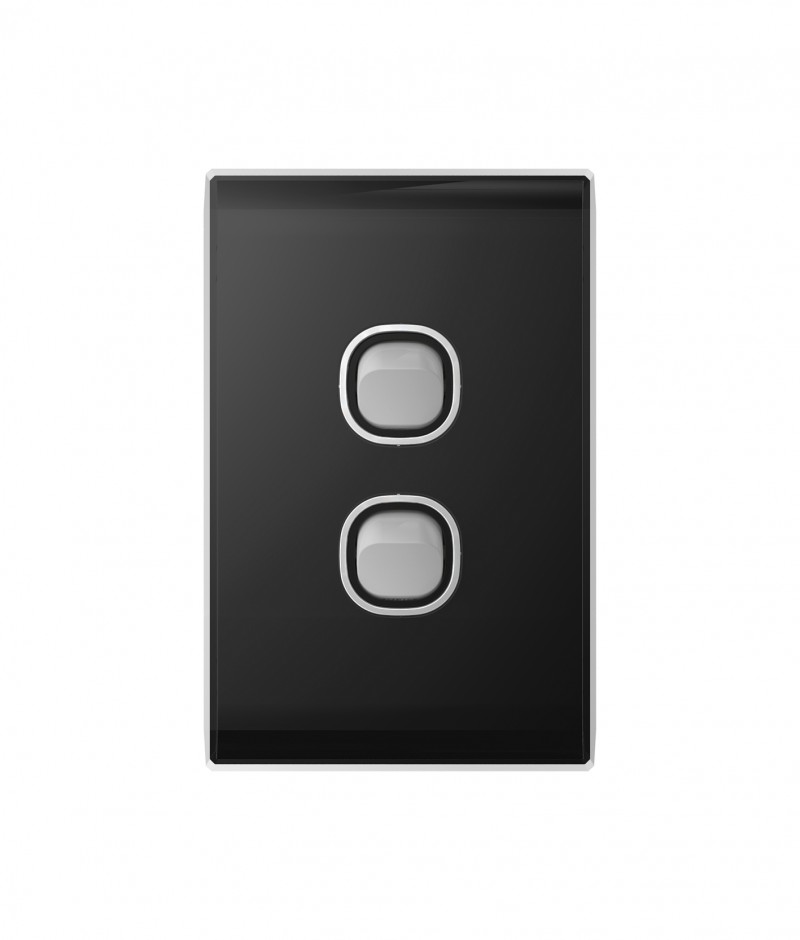

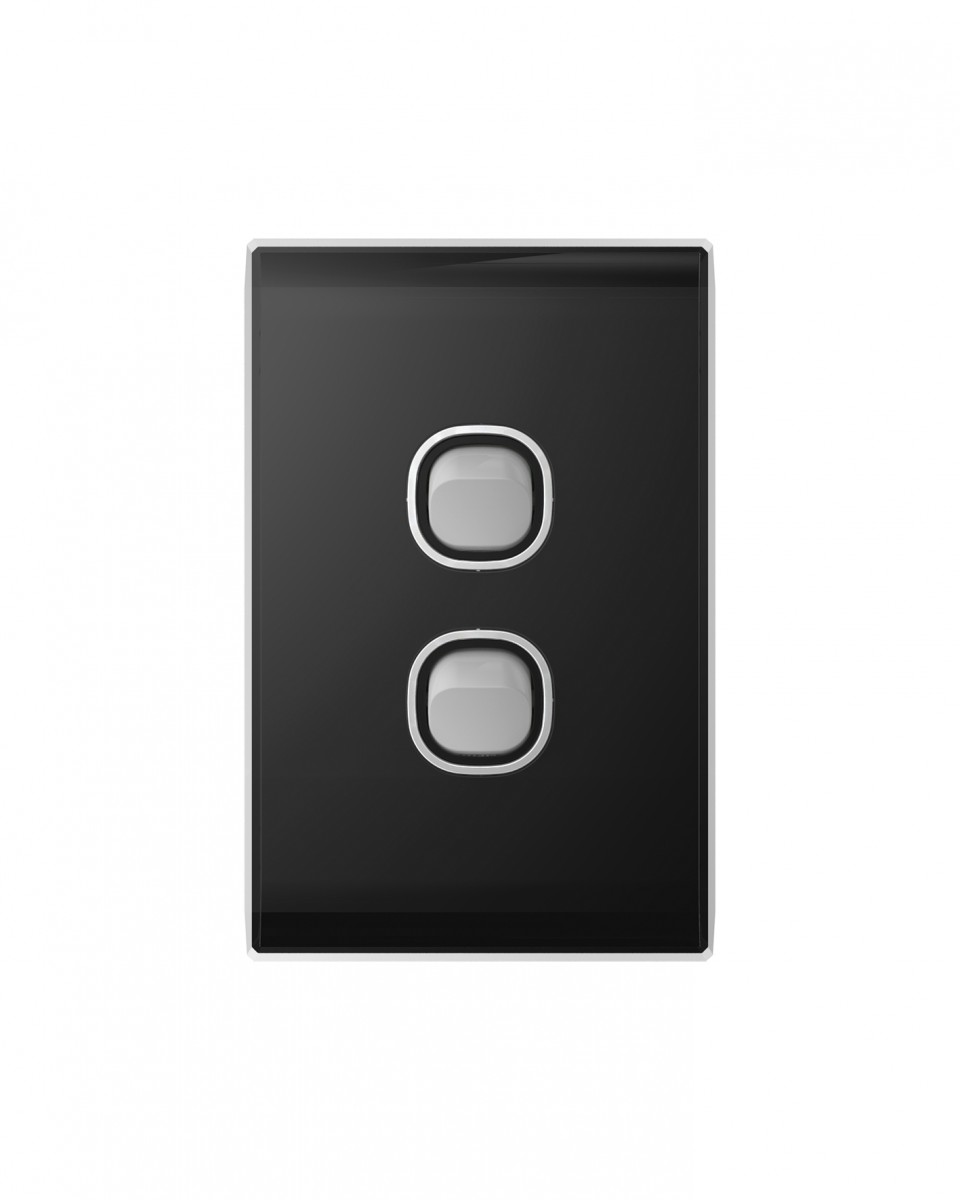

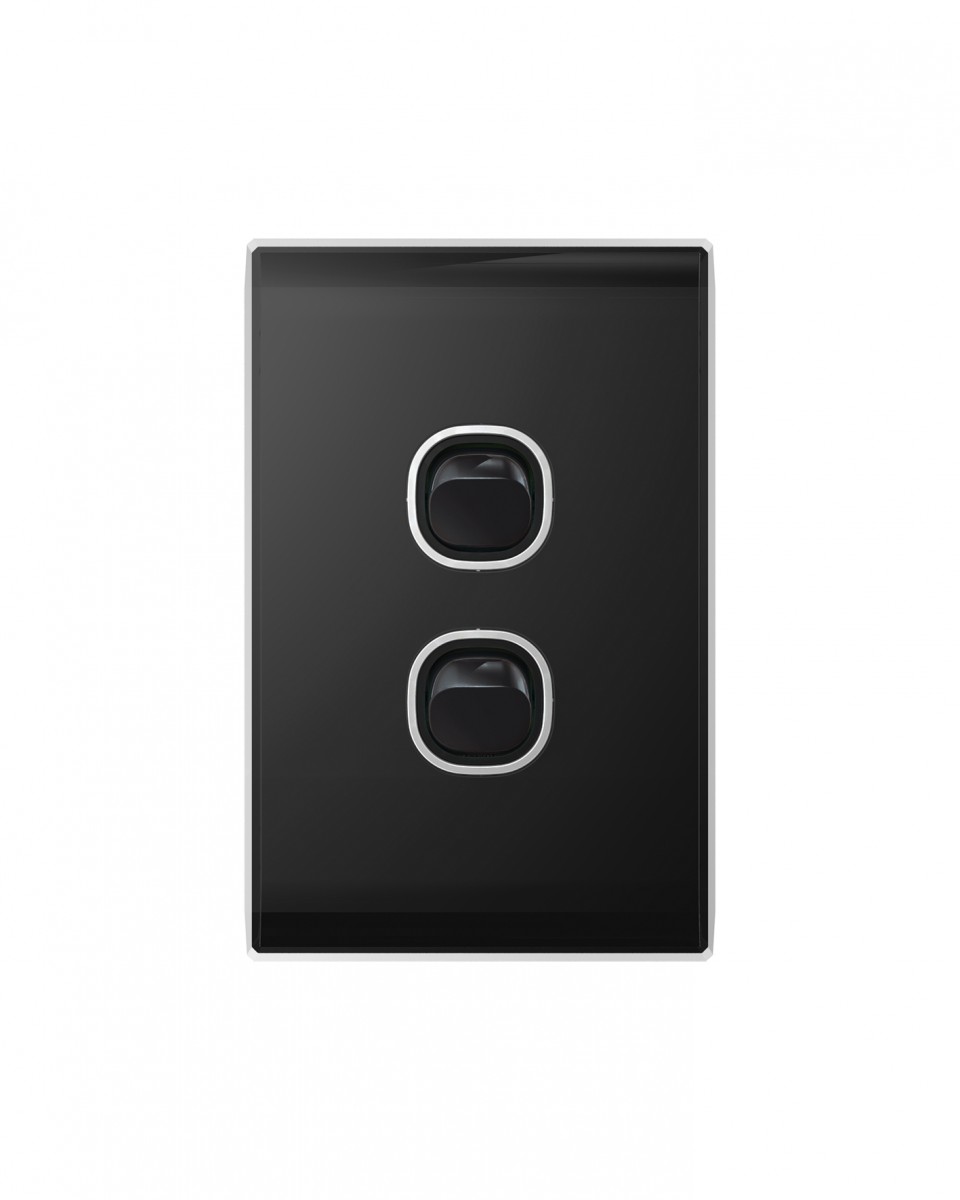

  • Standard colour is white. Available in Black, White/Silver and Black/Silver - Please check availability.

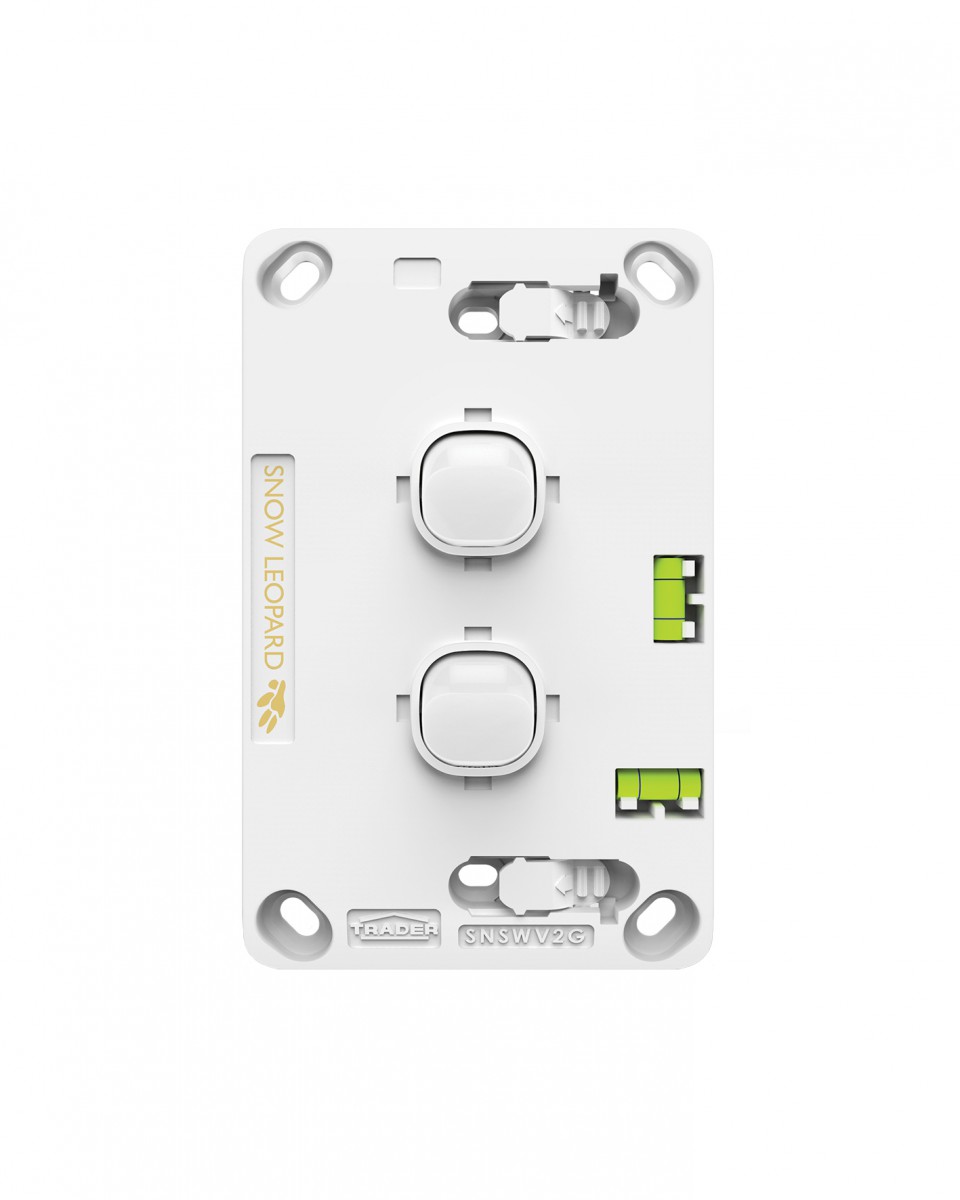

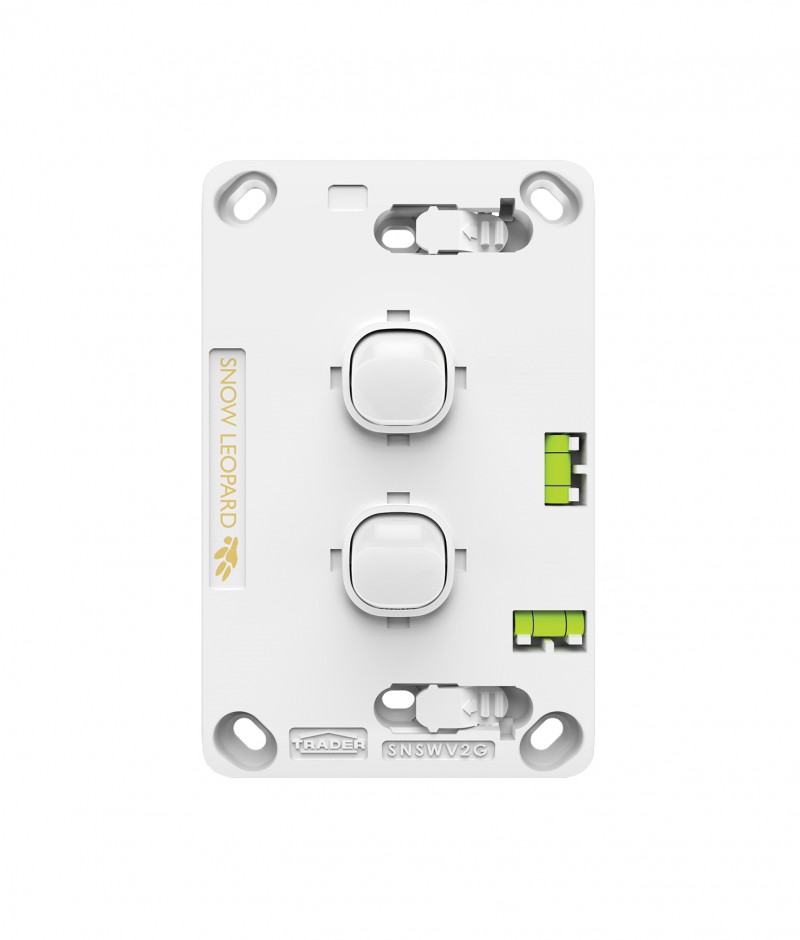

  • Plates suit Trader Meerkat MESWC mechs, including TV and Data; and Clipsal 30 Style* mechs and accessories.
  • Horizontals are available by request.
  • 10 Year Warranty.

View Data Sheet in Downloads for complete product information.
