HPISWL120RW
Isolator Switch Weatherproof IP66 20A 250V ac 1 Pole Large Chemical Resistant White
SKU
HPISWL120RW
Box Qty
1
Categories
Isolators Chemical Resistant
Features
- Large Isolators
- Hippo Isolators are tested to AS/NZS3133 and AS/NZS IEC60947-3.
- The Hippo larger enclosures feature twin 25mm threaded entries both top and bottom.
- The internal isolator switch modules are base mounted to provide a stable platform for wiring. Examples of the inner modules are pictured below.
- More detail for switches can be seen in the table on following page.
- Packaging lid features cutting template for easy marking out.
- UV stabilised
- Colour: White.
- Chemical Resistant White for Acid Applications. The switches feature:
- Combination head terminal screws
- Combination head earth and neutral terminal screws
- Alignment sleeves on switch housing guides screwdriver into terminal screws, reduces screwdriver tips jumping out.
- Terminal bores have plenty of space for wiring (see table for sizes)
- Pad lock
Product specs

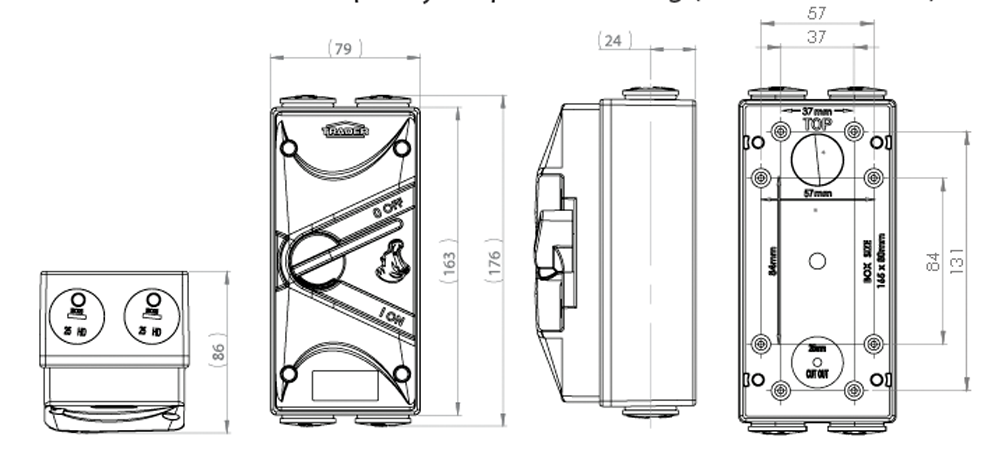

Dimensions
165mm x 86mm x 86mm
Voltage
250
Amperage
20
Poles
1
Material
Polycarbonate
Surface finish
Gloss
Hippo Chemical Resistant HPISWL120RW Data Sheet
Hippo
Download to discover more about this product.
Hippo Chemical Resistant Data Sheet
Hippo
Download to discover more about this product.
Isolator Chemical Resistant Flyer
Hippo
Download to discover more about this product.
Isolators Chemical Resistant
Hippo
Know Your Product - Watch this quick product overview to discover the key features and benefits.
