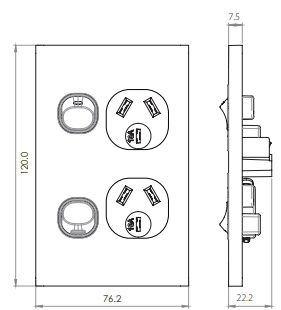

- Fits standard Australian wall boxes and mounting accessories that use 84mm mounting centres.

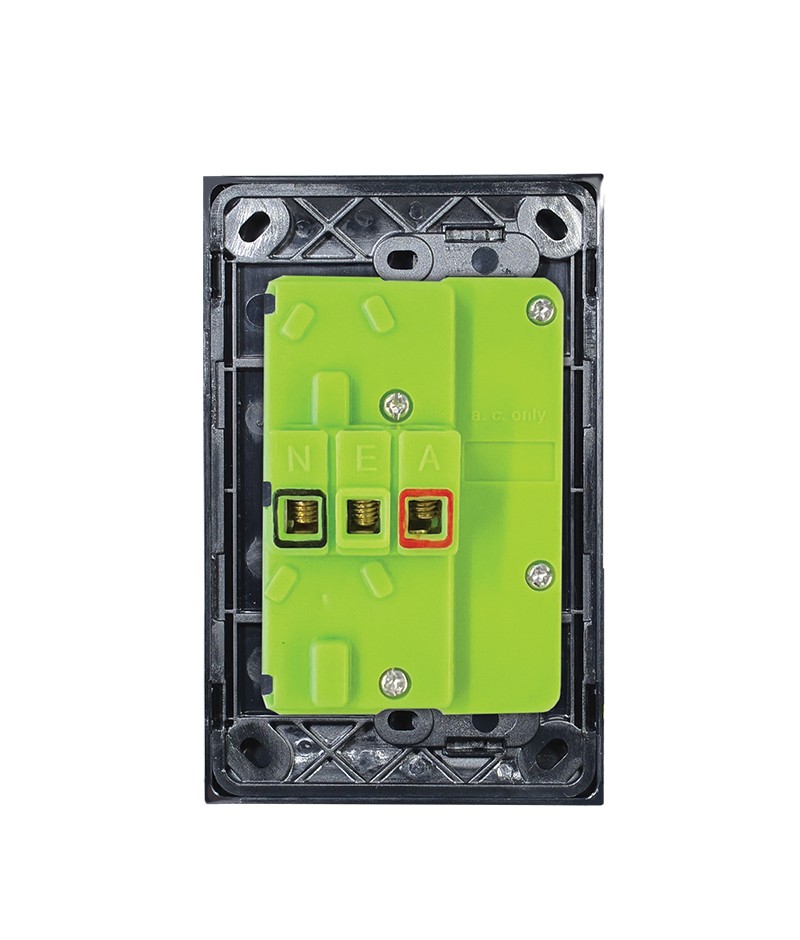

- Uses brass tunnel terminals that have the screws backed out for easier installation of cabling.
- Power point terminals have 6mm bore to suit 4 x 2.5mm2 cable. Switch terminals have 4.1mm suit 4 x 1.5mm2.
- Combination head screws for the socket terminals.
- Uses ‘Cat Flap’ screw covers for IP rating mounting screws.
- Dolly indicator colour green.
- Socket outlets approved to AS/NZS3112
Discover more, view Data Sheet in Downloads or watch Trader’s KNOW YOUR PRODUCT VIDEOS here.
