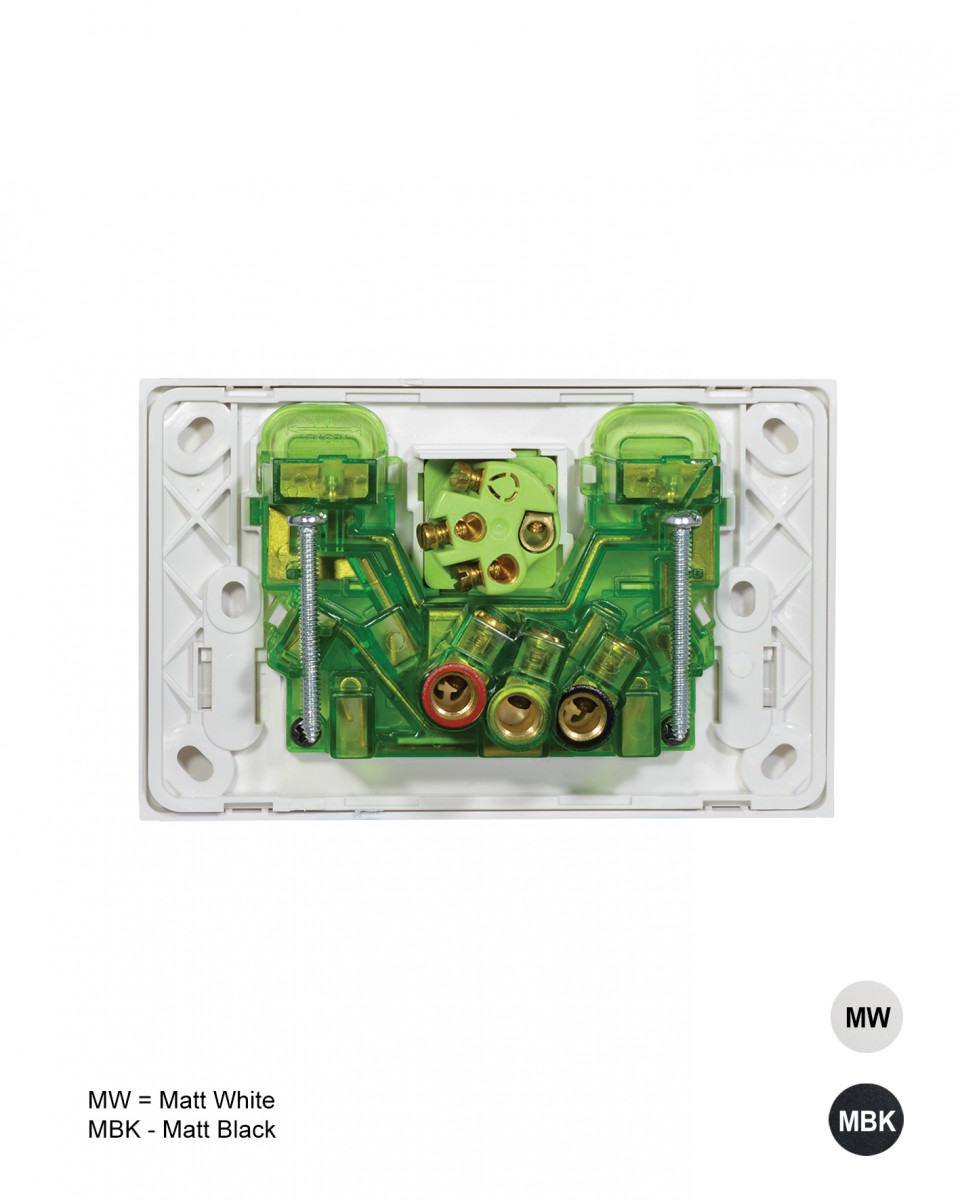

- Fits standard Australian wall boxes and mounting accessories that use 84mm mounting centres. Uses brass tunnel terminals that have the screws backed out for easier installation of cabling. Power point terminals have 6mm bore to suit 4 x 2.5mm2 cable. Switch terminals have 4.1mm to suit 4 x 1.5mm2 .
- Combination head screws for the socket terminals.
- Uses ‘Cat Flap’ screw covers for IP2X rating on mounting screws.
- Dolly indicator colour green.
- Socket outlets approved to AS/NZS3112.
View Data Sheet in Downloads for complete product information.
