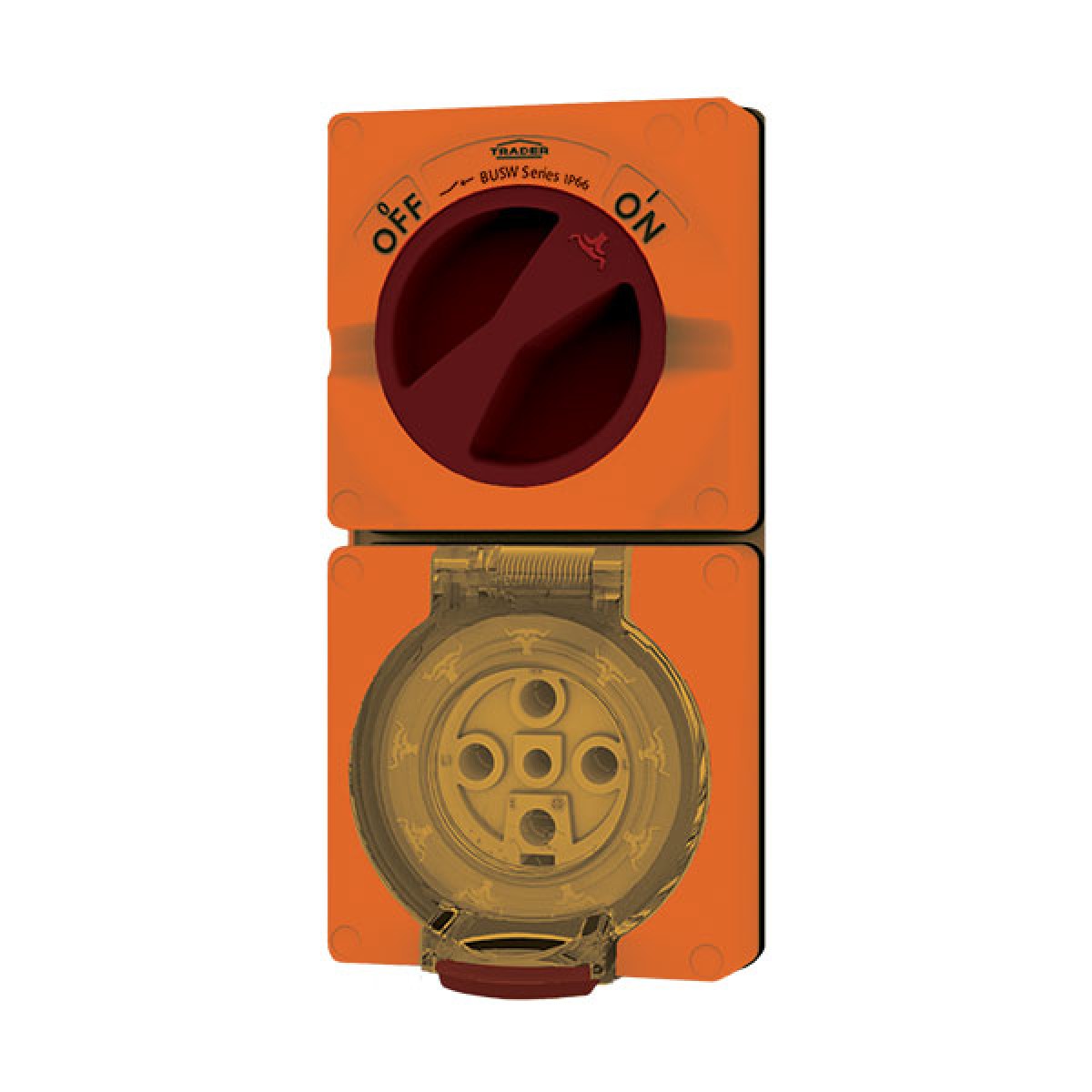

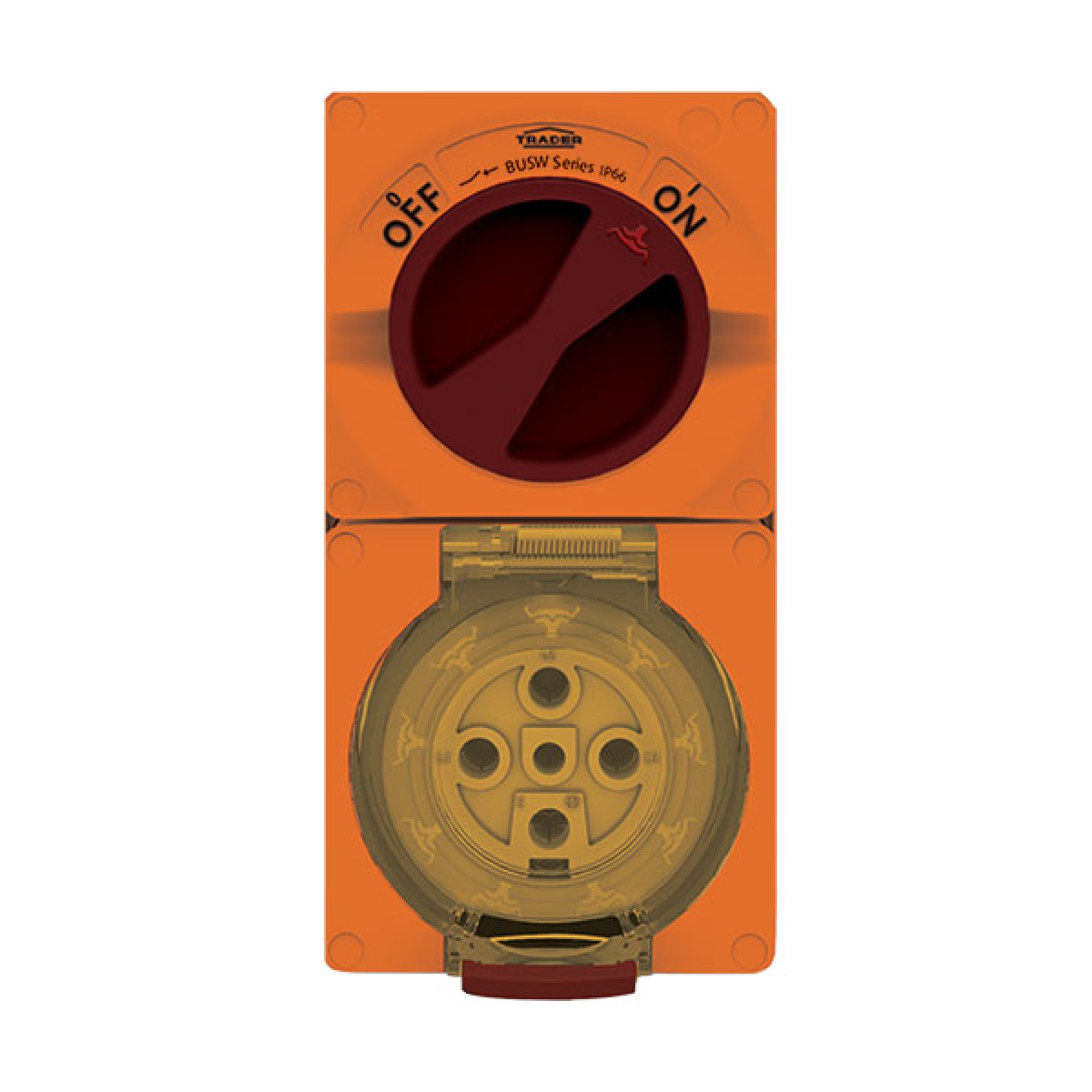

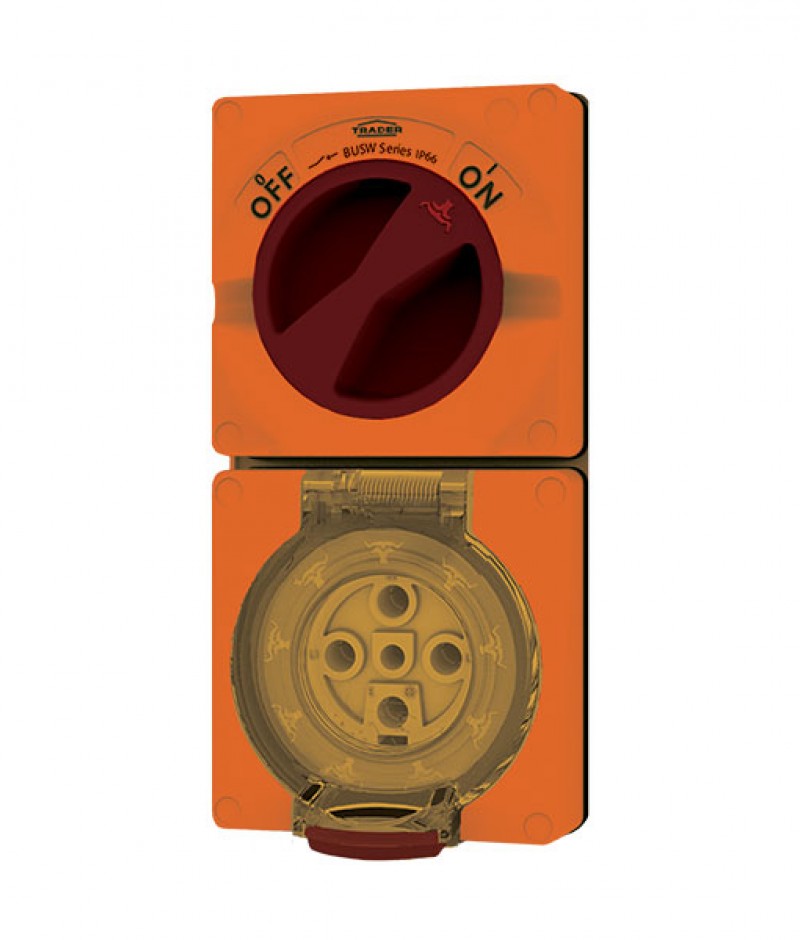

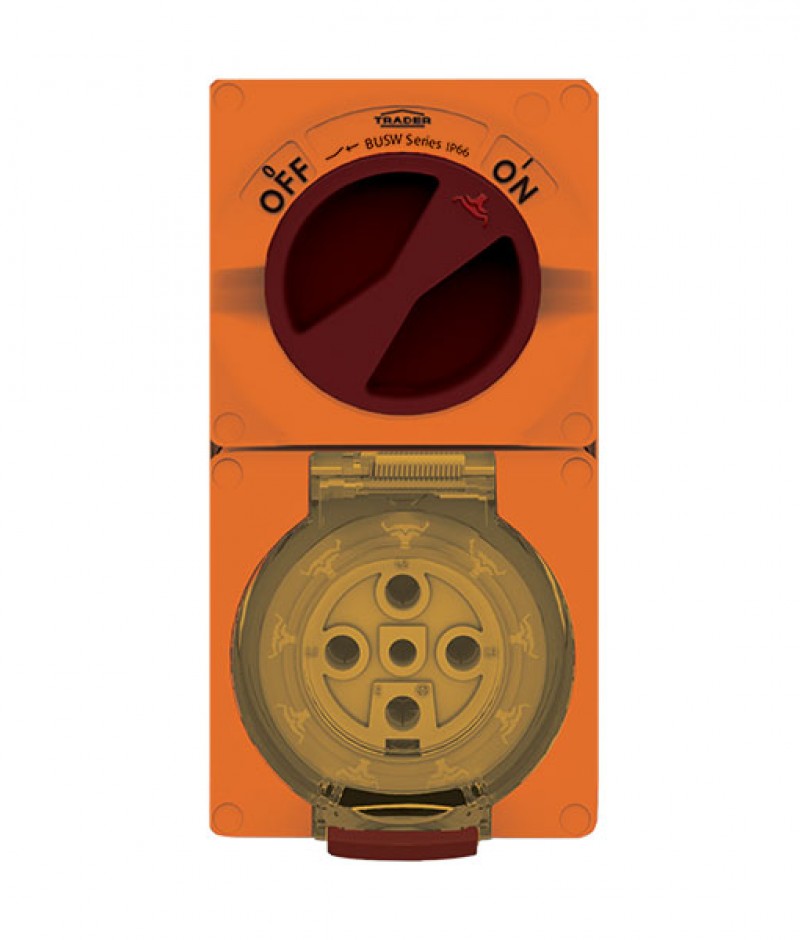

IP66 Combination Switched Sockets
Buffalo offers an extensive range of IP66 rated Combination Switched Sockets that are available in three-pin 10A to 32A, four-pin 10A to 50A and five-pin 10A to 50A designs.
Phase links are factory fitted between switches and sockets.
Small Single phase Flat pin - 10A to 20A
Size 1 Single & Three Phase - 10A- 20A
Size 2 Single & Three Phase - 32A - 50A
Heavy Duty terminals are standard on all products with Double Pole switching option as standard on 3 pin products.
The combination switch handle has two padlocking facilities
(Oval Shape 11 x 9mm) so equipment can be safely isolated.
Switch is provided with LED fitment option (not supplied).
Combination sockets feature a clear dustproof & hoseproof flap allowing simple viewing of sockets. The flap is also provided with a reliable spring-tensioned latch to keep dust & liquids out.
• Recommended screw torque for corner cover screws 0.6Nm
• Recommended torque for Earth/Neutral fixed terminals 2Nm
• Recommended torque for Switch terminals 2.5Nm
Part bag contains twin screwed connector.
Chemical Resistant Orange for Acid Applications.
• NOTE: RO models use dark red knobs to represent the pH scale.
 |
