BUEXSOA532

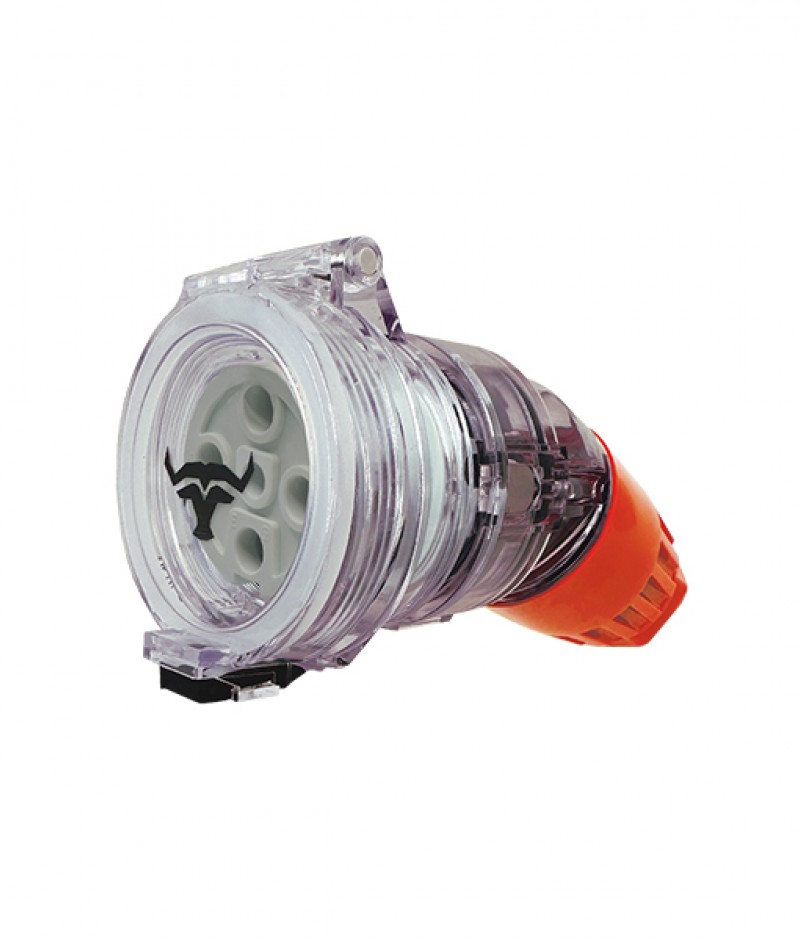

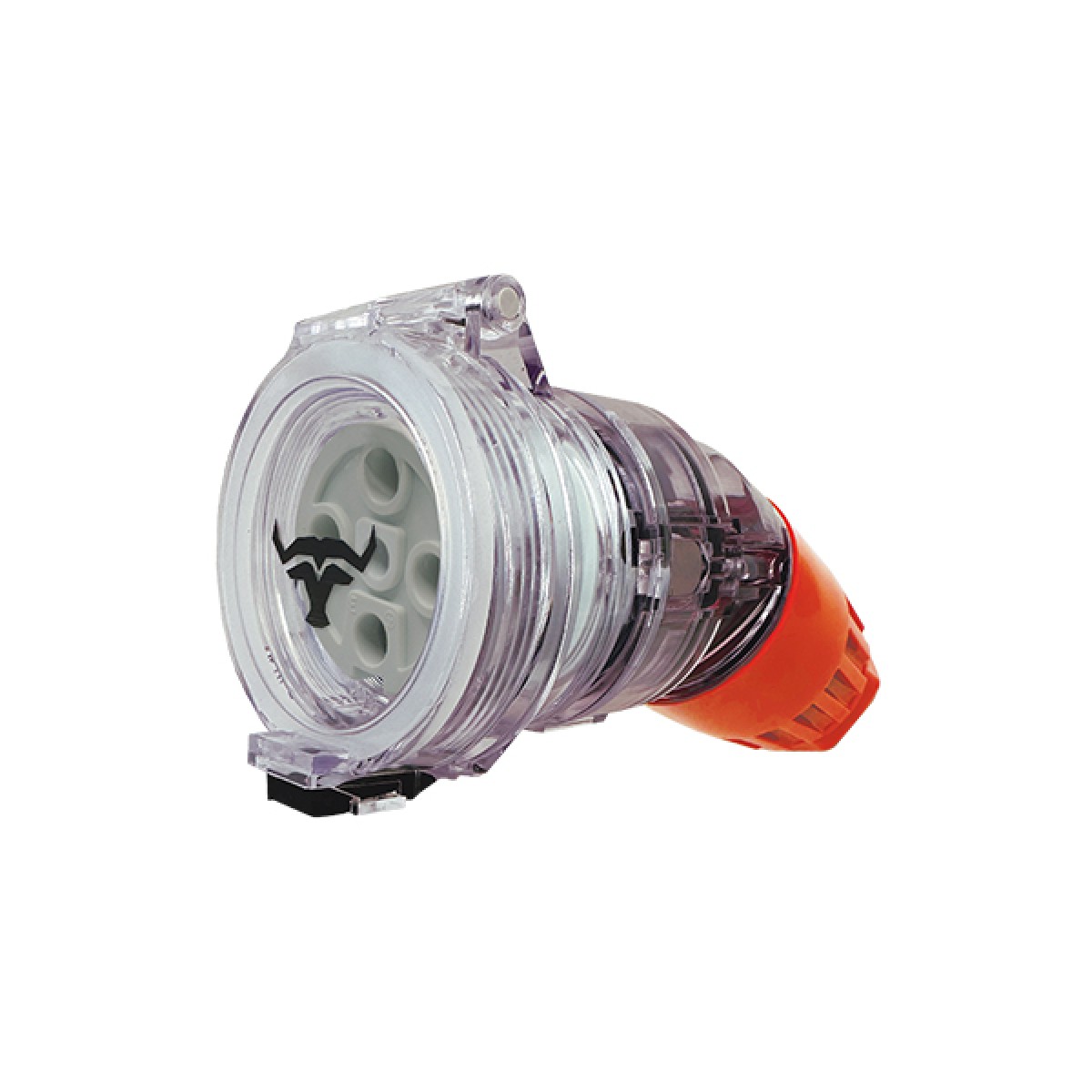

IP66 Extension Angled Sockets
• Size 1 Single & Three Phase 10A to 20A (250V~ to 500V~).
• Size 2 Single & Three Phase 32A to 50A (250V~ to 500V~).
• 3 Round Pin, 4 Round Pin, 5 Round Pin.
• 10A, 15A, 20A, 32A, 40A & 50A current ratings.
• Ribbed Lock ring on Small Single Phase versions for gripping with gloved hands.
• Rear cord entry and cable gland ensuring IP66 rating.
• Internal cable clamp to support electrical connections.
• Size 1 Single and Three Phase suits Smaller to Medium single or three phase loads.
• Size 2 Single and Three Phase suits Medium to Large single or three phase loads.
• Size 1 and Size 2 products have hinged Spring Loaded cover flaps for added safety and to keep dust & water out.
• Small Extension Sockets 10A and 20A accept cables from ø 6-12mm
Size 1 Extension Sockets 10A and 20A accept cables from ø 12-16mm
Size 2 Extension Sockets 32A, 40A and 50A accept cables from ø 11-16mm
