Trader has introduced a selective range of IP67 extensions sockets in accordance with IEC 60309 and AS/NZS 60309 in the Bison range. The plugs have initially been offered as a solution to interact with fixed sockets in the IEC format offered in several of the TRADER Buffalo range for general use in 6h and refrigerated containers in the 3h format. The Bison range however is much more than just for this purpose and can provide an interactive solution for many other IEC 60309 based products in industry. The durable structure and hydrant lock provided excellent performance for many applications.
It features easy to assemble and install lock rings, glands and housings making it versatile and robust for industrial use. Quick release mechanism for opening on 32A models.
As referenced the current offer will be available as IP67 models with the hydrant lock.

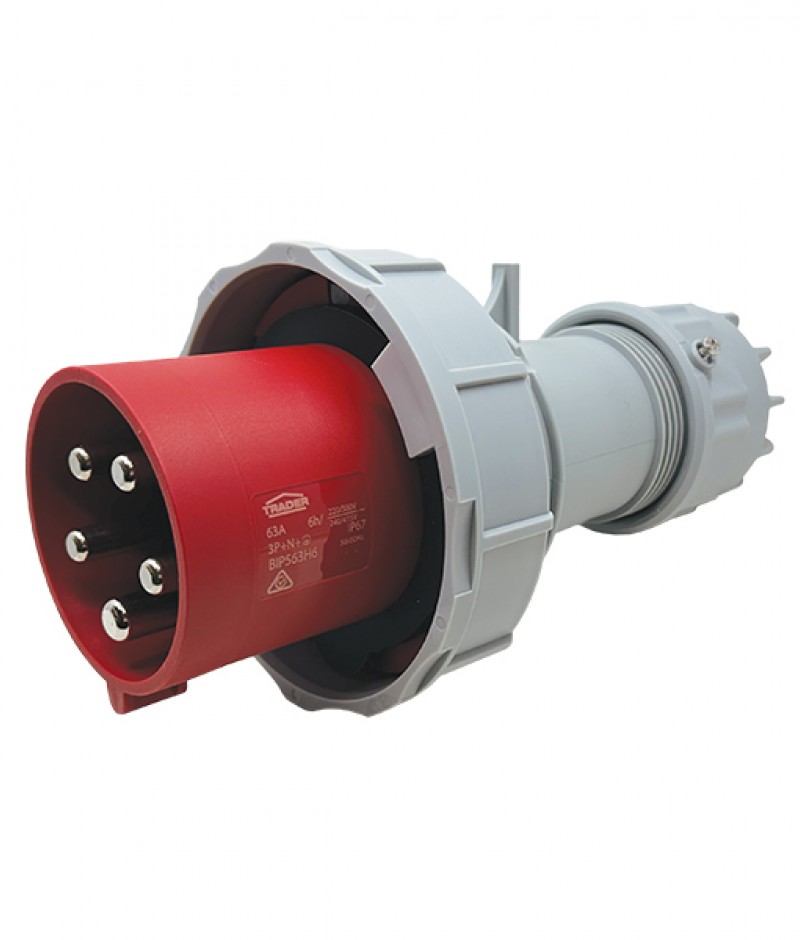

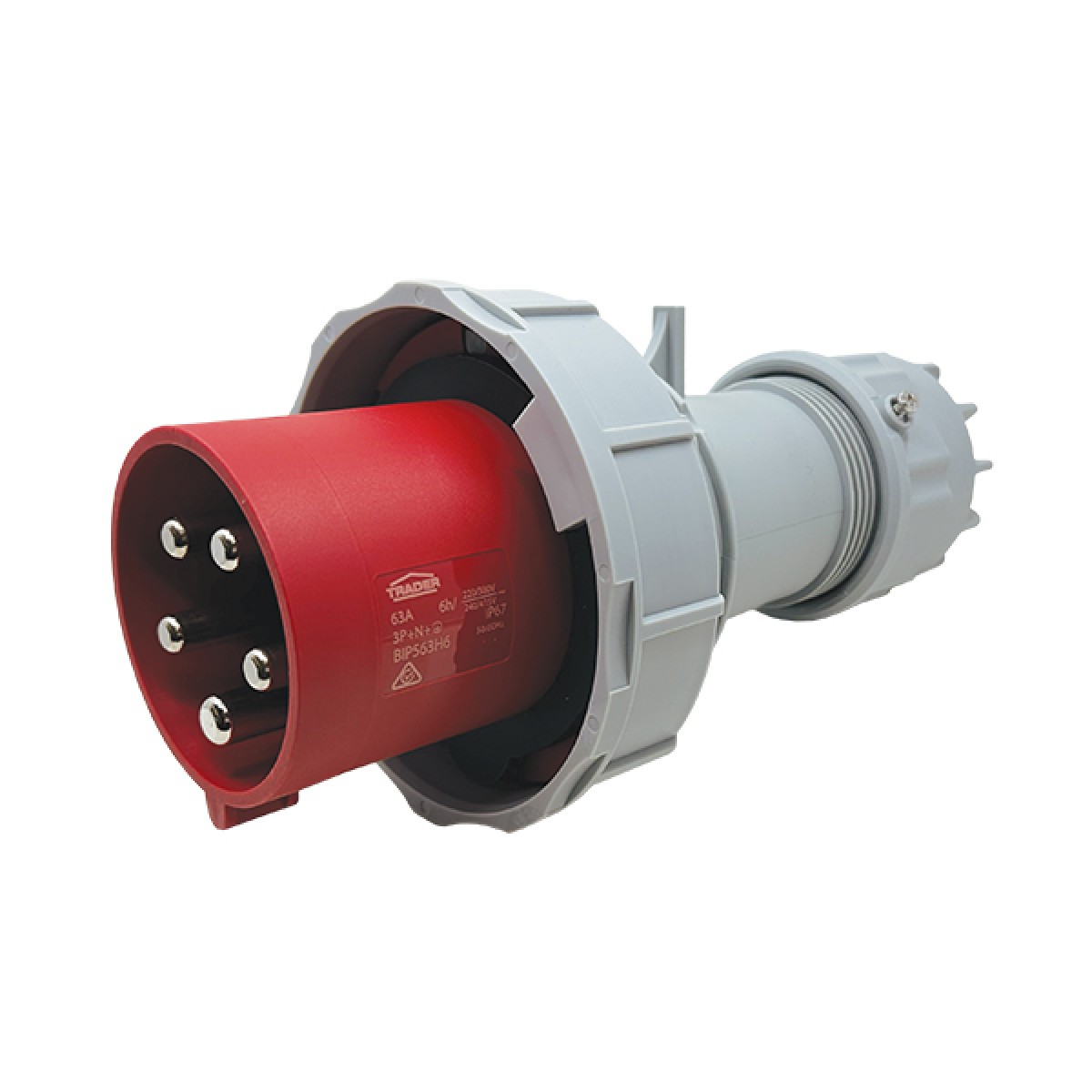

There is also a 5 pin (3P +N + E) 63A red models with 6h keyway/earth pin positions for general usage
Cable sizes suited
32A models terminal Diameter 5.2mm for 16mm2
63A models terminal Diameter 7.1mm for 25mm2
